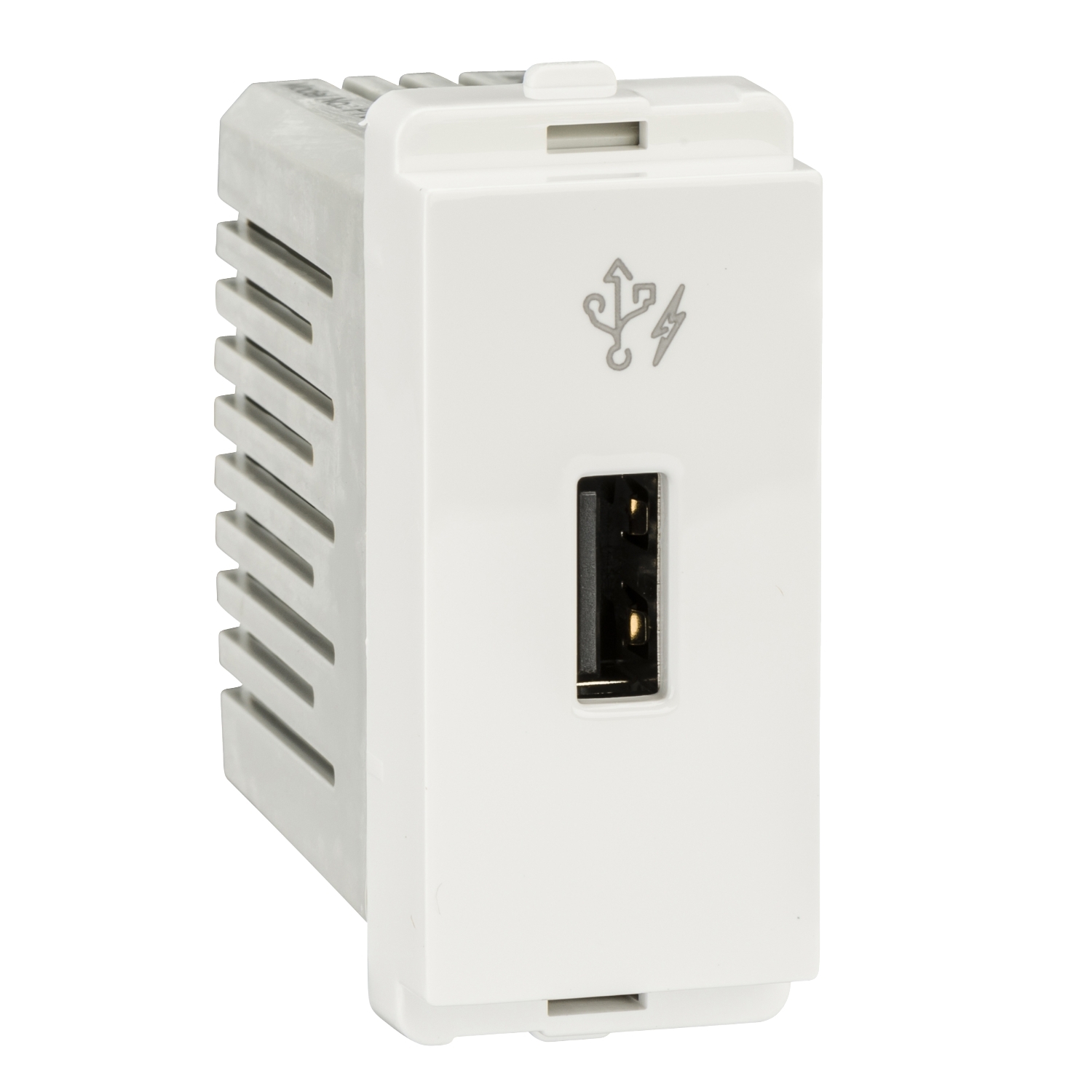

P7002 | USB Charger, Livia, 2.1A 5VDC port, 1 module, white – Schneider Electric

Name: Schneider Electric Livia USB Charger | 2.1A Port, White | P7002
Brand: Schneider Electric
SKU: P7002
Price: 791.04 INR
Availability: BackOrder

SKU: P7002

Original price was: ₹2,472.00.Current price is: ₹791.04. Excl. GST

Dispatch By : 2 Weeks

18 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Sourced through authorised channels, the Schneider Electric P7002 usb charger module from the Livia range delivers dependable performance for industrial, commercial, and infrastructure applications. Key ratings include 2.1 A, 220…240 V AC at 50/60 Hz, IP20. myelectric.in stocks the P7002 | USB Charger, Livia, 2.1A 5VDC port, 1 module, white for contractors, panel builders, and project buyers — buy online with GST invoice, or request a bulk quote for domestic supply and export to UAE, Singapore, UK, USA, Sri Lanka and more.

📋 Technical Specifications

Product
Brand	Schneider Electric
Part Number / SKU	P7002
Category	USB Charger Module
Main
Range of product	Livia
Range	Livia
Product or component type	USB socket
Type of USB power supply	USB type A
Device application	Power supply
Device presentation	Mechanism with cover plate
Colour tint	White (RAL 9003)
Number of terminals	2 screw terminals
Targeted channel	Do it yourself
Complementary
[Ue] rated operational voltage	220…240 V AC at 50/60 Hz
Socket number	1
Device mounting	Flush
Surface finish	Glossy
surface treatment	Antibacterial
Number of modules	1 module
fixing mode	Snap-fitted
Connector type	USB type A
Input power	0.3 W
Integrated connection type	1 USB type A 5 V DC, maximum load current: 2.1 A
Material	PC (polycarbonate)
Protection type	Over temperature protection Overcurrent protection Overvoltage protection
Height	54.4 mm
Width	22.7 mm
Depth	51 mm
Product weight	120.9 g
Standards	IS 13252-1
Environment
Ambient air temperature for storage	-5…45 °C
Relative humidity	10…95 %
IP degree of protection	IP20
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	5.8 cm
Package 1 Width	2.3 cm
Package 1 Length	3.8 cm
Package 1 Weight	40 g
Unit Type of Package 2	BB1
Number of Units in Package 2	120
Package 2 Height	245 cm
Package 2 Width	260 cm
Package 2 Length	330 cm
Package 2 Weight	7.8 kg
Contractual warranty
Warranty (in months)	24

⚡ Key Features

2.1 A current rating — confirmed from product specifications; size wiring and terminals to match or exceed this value.
Manufactured to IS/IEC 60947, IS 8828 (MCBs), IS 13947, IEC 61439 (DBs) — complies with Indian BIS and IEC international safety standards.
BIS certified, CE marked, RoHS compliant — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
Genuine authorised Schneider Electric product — sourced directly from the official distribution network with full manufacturer traceability and warranty.
GST invoice provided for India orders — valid for corporate procurement, government project orders, and public tender supply via myelectric.in.
Worldwide export available — UAE, Singapore, UK, USA, Sri Lanka & more. Contact +91 94814 00316 for bulk pricing and international shipping.

❓ Frequently Asked Questions

Q: What is the significance of the 2.1 A rating on the P7002?

A: The 2.1 A rating is the device’s maximum continuous current carrying capacity under specified conditions (typically 40°C ambient). For circuit design, use 80% of this value as the design current to allow for derating due to grouping, temperature, and future load growth.

Q: How many single-pole MCBs can be installed in the P7002 with 1 modules?

A: With 1 modules available, the P7002 can accommodate that many standard 17.5mm-pitch single-pole devices. Multi-pole MCBs occupy proportionally more space: 2P = 2 modules, 3P = 3 modules, 4P = 4 modules. Mixed configurations (e.g. one 2P RCCB + remaining SP MCBs) can be planned using the module count.
