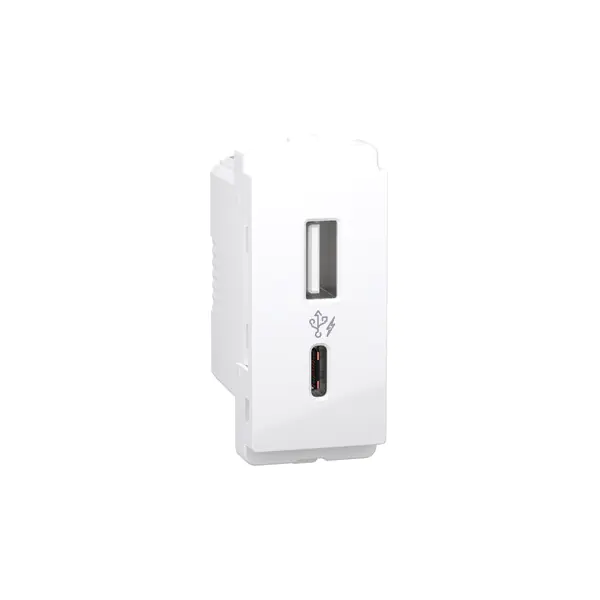

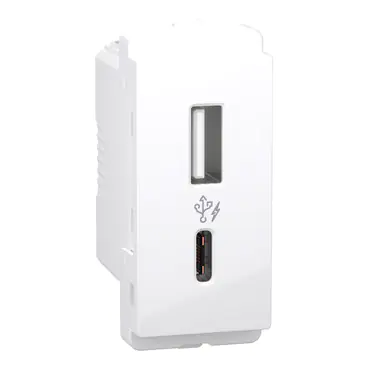

P7003 | USB Charger, Livia, A+C type, 1 module, 2.4A, 220-240V, white – Schneider Electric

Name: Schneider Electric Livia USB Charger | 2.4A Dual Port | P7003
Brand: Schneider Electric
SKU: P7003
Price: 1092.13 INR
Availability: BackOrder

SKU: P7003

Original price was: ₹3,523.00.Current price is: ₹1,092.13. Excl. GST

Dispatch By : 2 Weeks

14 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

The Schneider Electric P7003 is an usb charger module from the Livia range, engineered for industrial, commercial, and infrastructure applications in demanding Indian and international installations. Key ratings include 2.4 A, 220…240 V AC at 50/60 Hz, IK02. Buy the P7003 | USB Charger, Livia, A+C type, 1 module, 2.4A, 220-240V, white online at myelectric.in with GST invoice, genuine-product assurance, and fast delivery across India — bulk and worldwide export enquiries welcome.

📋 Technical Specifications

Product
Brand	Schneider Electric
Part Number / SKU	P7003
Category	USB Charger Module
Main
Range of product	Livia
Range	Livia
Product or component type	USB socket
Type of USB power supply	USB type A + C
Device application	Power supply
Device presentation	Mechanism with cover plate
Colour tint	White (RAL 9003)
Number of terminals	2 screw terminals
Targeted channel	Do it yourself
Complementary
[Ue] rated operational voltage	220…240 V AC at 50/60 Hz
Socket number	2
Device mounting	Flush
Surface finish	Glossy
Number of modules	1 module
fixing mode	Snap-fitted
Connector type	USB A+C
Input power	0.3 W
Integrated connection type	2 USB type A + C 5 V DC, maximum load current: 2.4 A
Material	PC (polycarbonate)
Protection type	Short-circuit protection Over temperature protection Overcurrent protection Overvoltage protection
Height	54.4 mm
Width	22.7 mm
Depth	39.9 mm
Product weight	0.0345 kg
Standards	IS 13252-1
load type	Capacitive Resistive
Environment
Ambient air temperature for storage	-5…45 °C
Relative humidity	10…90 %
IK degree of protection	IK02
IP degree of protection	IP20
Environmental characteristic	Indoor use
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	5.44 cm
Package 1 Width	2.27 cm
Package 1 Length	3.99 cm
Package 1 Weight	36.5 g
Unit Type of Package 2	BB1
Number of Units in Package 2	10
Package 2 Height	16 cm
Package 2 Width	10 cm
Package 2 Length	16 cm
Package 2 Weight	413 g
Unit Type of Package 3	CAR
Number of Units in Package 3	32
Package 3 Height	21 cm
Package 3 Width	33.5 cm
Package 3 Length	44 cm
Package 3 Weight	13.933 kg
Contractual warranty
Warranty (in months)	18

⚡ Key Features

2.4 A current rating — confirmed from product specifications; size wiring and terminals to match or exceed this value.
220–240V AC operating voltage — compatible with standard LV distribution voltages used in Indian industrial installations.
Manufactured to IS/IEC 60947, IS 8828 (MCBs), IS 13947, IEC 61439 (DBs) — complies with Indian BIS and IEC international safety standards.
BIS certified, CE marked, RoHS compliant — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
Genuine authorised Schneider Electric product — sourced directly from the official distribution network with full manufacturer traceability and warranty.
GST invoice provided for India orders — valid for corporate procurement, government project orders, and public tender supply via myelectric.in.
Worldwide export available — UAE, Singapore, UK, USA, Sri Lanka & more. Contact +91 94814 00316 for bulk pricing and international shipping.

❓ Frequently Asked Questions

Q: What is the significance of the 2.4 A rating on the P7003?

A: The 2.4 A rating is the device’s maximum continuous current carrying capacity under specified conditions (typically 40°C ambient). For circuit design, use 80% of this value as the design current to allow for derating due to grouping, temperature, and future load growth.

Q: How many single-pole MCBs can be installed in the P7003 with 1 modules?

A: With 1 modules available, the P7003 can accommodate that many standard 17.5mm-pitch single-pole devices. Multi-pole MCBs occupy proportionally more space: 2P = 2 modules, 3P = 3 modules, 4P = 4 modules. Mixed configurations (e.g. one 2P RCCB + remaining SP MCBs) can be planned using the module count.
