Inductive Sensor XS2 M18 – XS218BLPAM12
Product Overview

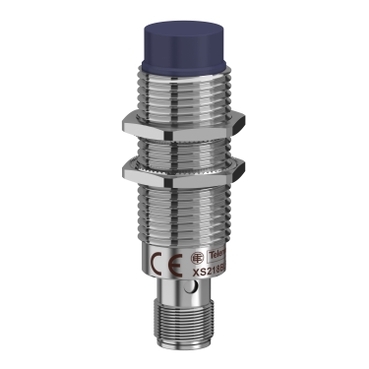

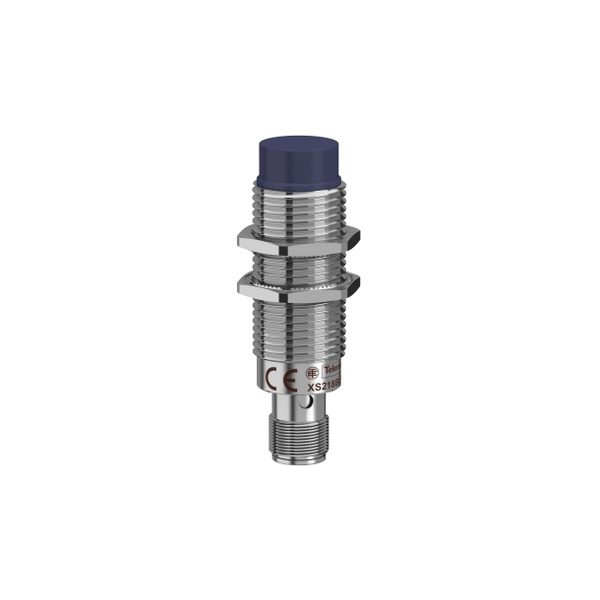

The XS218BLPAM12 is a high-performance inductive sensor from the XS2 series by Telemecanique Sensors. Designed for industrial applications, this sensor offers reliable detection of metallic objects with precision and durability.
Key Features
- Model: XS218BLPAM12
- Series: XS2
- Body Material: Brass
- Body Diameter: M18
- Length: 64mm
- Sensing Distance: 8mm (Sn)
- Operating Voltage: 12..24VDC
- Connection Type: M12 Connector
- Output Type: PNP Normally Open (NO)
- Protection Rating: IP67
- Temperature Range: -25°C to +70°C
- Housing: Shielded
- Mounting: Flush or Non-Flush Mounting
Applications
The XS218BLPAM12 is suitable for a wide range of industrial applications, including:
- Position detection in automated machinery
- Object detection in conveyor systems
- Presence sensing in manufacturing processes
- Metal detection in harsh environments
Technical Specifications
| Parameter | Value |
|---|---|
| Supply Voltage | 12..24VDC |
| Current Consumption | < 15mA |
| Switching Frequency | 1kHz |
| Hysteresis | < 10% of Sn |
| Protection Class | IP67 |
| Connection | M12 Connector, 4-pin |
Benefits
- Robust brass housing for durability in harsh environments
- High sensing distance for versatile applications
- Compact design for easy integration
- Reliable performance with PNP output
- IP67 rating ensures protection against dust and water ingress
Warranty
This product comes with a standard manufacturer warranty of 1 year.
