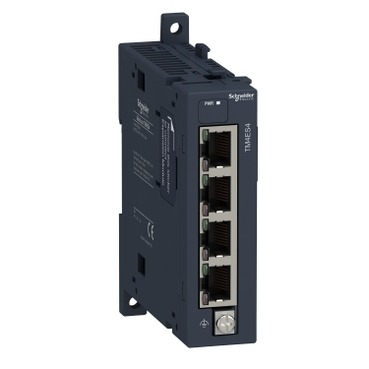

TM4ES4 | MODULE NETWORK TM4-4 Ethernet switchs – Schneider Electric

Name: TM4ES4 | MODULE NETWORK TM4-4 Ethernet switchs - Schneider Electric - myelectric.in
Brand: Schneider Electric
SKU: TM4ES4
Price: 39381.54 INR
Availability: InStock

SKU: TM4ES4

Original price was: ₹59,669.00.Current price is: ₹39,381.54. Excl. GST

In stock

19 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Looking for the TM4ES4 | MODULE NETWORK TM4-4 Ethernet switchs? This genuine Schneider Electric electrical component is built for industrial, commercial, and infrastructure applications, combining proven reliability with full compliance to applicable IEC/IS standards. Key ratings include IP20 with protective cover in place. Order part number TM4ES4 from myelectric.in — a trusted Schneider Electric supplier offering competitive pricing, GST billing, and shipping across India and overseas.

📋 Technical Specifications

Product
Brand	Schneider Electric
Part Number / SKU	TM4ES4
Category	Electrical Component
Main
Product or component type	Ethernet unmanaged switch
Complementary
Range compatibility	Modicon M251 Modicon M241
Product compatibility	Modicon M241 logic controller Modicon M251 logic controller
Current consumption	360 mA at 5 V DC for communication bus
Integrated connection type	Ethernet: 4 RJ45 connector
Transmission rate	10/100 Mbit/s
Port Ethernet	10BASE-T/100BASE-TX – 4 port(s) copper cable
Web services	Web server
Communication service	Modbus TCP server Modbus TCP slave device FTP NGVL Monitoring IEC VAR ACCESS Programming SNMP Modbus TCP client Downloading Updating firmware Ethernet/IP slave device DHCP client
Maximum number of connections	8 Modbus server 16 Ethernet/IP device
Communication port protocol	Ethernet IP/Modbus TCP TCP (Transmission Control Protocol) UDP (User Datagram Protocol) SNMP
Redundancy	No
Local signalling	1 LED (green) for PWR 1 LED per channel (green/yellow) for Ethernet link 1 LED per channel (green) for Ethernet port activity
Electrical connection	RJ45 4 connectors for connecting Ethernet network Screw connector terminal for connecting the functional ground
Marking	CE
Surge withstand	1 kV power lines (DC) common mode conforming to IEC 61000-4-5 2 kV power lines (AC) common mode conforming to IEC 61000-4-5 2 kV relay output common mode conforming to IEC 61000-4-5 1 kV I/O common mode conforming to IEC 61000-4-5 1 kV shielded cable common mode conforming to IEC 61000-4-5 0.5 kV power lines (DC) differential mode conforming to IEC 61000-4-5 1 kV power lines (AC) differential mode conforming to IEC 61000-4-5 1 kV relay output differential mode conforming to IEC 61000-4-5 0.5 kV I/O differential mode conforming to IEC 61000-4-5
Mounting support	Top hat type TH35-15 rail conforming to IEC 60715 Top hat type TH35-7.5 rail conforming to IEC 60715 plate or panel with fixing kit
Width	25 mm
Height	90 mm
Depth	90 mm
Product weight	0.125 kg
Environment
Standards	UL 508 IEC 61131-2
Product certifications	cULus C-Tick
Resistance to electrostatic discharge	8 kV in air conforming to IEC 61000-4-2 4 kV on contact conforming to IEC 61000-4-2 8 kV in air conforming to Marine specification (LR, ABS, DNV, GL) 6 kV on contact conforming to Marine specification (LR, ABS, DNV, GL)
Resistance to electromagnetic fields	10 V/m 80 MHz…1 GHz conforming to IEC 61000-4-3 3 V/m 1.4 GHz…2 GHz conforming to IEC 61000-4-3 1 V/m 2…2.7 GHz conforming to IEC 61000-4-3
Resistance to fast transients	2 kV (power lines) conforming to IEC 61000-4-4 2 kV (relay output) conforming to IEC 61000-4-4 1.5 kV (I/O) conforming to IEC 61000-4-4 1 kV (Ethernet line) conforming to IEC 61000-4-4 1 kV (serial link) conforming to IEC 61000-4-4
Resistance to conducted disturbances	10 V 0.15…80 MHz conforming to IEC 61000-4-6 3 V 0.1…80 MHz conforming to Marine specification (LR, ABS, DNV, GL) 10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) conforming to Marine specification (LR, ABS, DNV, GL)
Electromagnetic emission	Conducted emissions – test level: 79 dBμV/m QP/66 dBμV/m AV ( power lines (AC)) at 0.15…0.5 MHz conforming to IEC 55011 Conducted emissions – test level: 73 dBμV/m QP/60 dBμV/m AV ( power lines (AC)) at 0.5…300 MHz conforming to IEC 55011 Conducted emissions – test level: 120…69 dBµV/m QP ( power lines) at 10…150 kHz conforming to IEC 55011 Conducted emissions – test level: 63 dBμV/m QP ( power lines) at 1.5…30 MHz conforming to IEC 55011 Radiated emissions – test level: 40 dBμV/m QP class A at 30…230 MHz conforming to IEC 55011 Radiated emissions – test level: 60…54 dBμV/m QP at 30…100 MHz conforming to Marine specification (LR, ABS, DNV, GL) Radiated emissions – test level: 24 dBμV/m QP at 156…165 MHz conforming to Marine specification (LR, ABS, DNV, GL) Conducted emissions – test level: 79…63 dBμV/m QP ( power lines) at 150…1500 kHz conforming to IEC 55011 Radiated emissions – test level: 47 dBμV/m QP class A at 230…1000 MHz conforming to IEC 55011 Radiated emissions – test level: 80…50 dμV/m QP at 150…30000 kHz conforming to Marine specification (LR, ABS, DNV, GL) Radiated emissions – test level: 54 dBμV/m QP at 100…2000 MHz conforming to Marine specification (LR, ABS, DNV, GL)
Ambient air temperature for operation	-10…55 °C horizontal installation -10…50 °C vertical installation
Ambient air temperature for storage	-25…70 °C
Relative humidity	10…95 %, without condensation (in operation) 10…95 %, without condensation (in storage)
IP degree of protection	IP20 with protective cover in place
Pollution degree	2
Operating altitude	0…2000 m
Storage altitude	0…3000 m
Vibration resistance	1 mm at 5…13.2 Hz on symmetrical rail 3 gn at 8.7…150 Hz on symmetrical rail 1 mm at 5…13.2 Hz on panel mounting 0.7 gn at 13.2…100 Hz on panel mounting
Shock resistance	15 gn for 11 ms
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	5.635 cm
Package 1 Width	11.532 cm
Package 1 Length	17.033 cm
Package 1 Weight	210.0 g
Unit Type of Package 2	S03
Number of Units in Package 2	20
Package 2 Height	30 cm
Package 2 Width	30 cm
Package 2 Length	40 cm
Package 2 Weight	5.04 kg
Unit Type of Package 3	P06
Number of Units in Package 3	160
Package 3 Height	75 cm
Package 3 Width	60 cm
Package 3 Length	80 cm
Package 3 Weight	48 kg
Contractual warranty
Warranty (in months)	18

⚡ Key Features

Manufactured to IS/IEC 60947, IS 8828 (MCBs), IS 13947, IEC 61439 (DBs) — complies with Indian BIS and IEC international safety standards.
BIS certified, CE marked, RoHS compliant — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
Genuine authorised Schneider Electric product — sourced directly from the official distribution network with full manufacturer traceability and warranty.
GST invoice provided for India orders — valid for corporate procurement, government project orders, and public tender supply via myelectric.in.
Worldwide export available — UAE, Singapore, UK, USA, Sri Lanka & more. Contact +91 94814 00316 for bulk pricing and international shipping.
