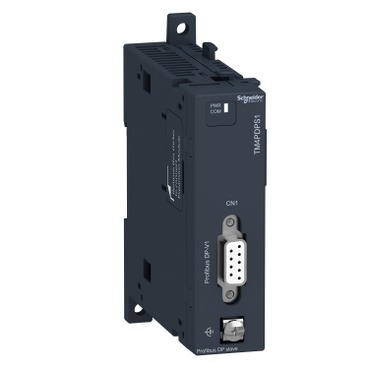

TM4PDPS1 | MODULE NETWORK TM4-1 Profibus DP slave – Schneider Electric

Name: TM4PDPS1 | MODULE NETWORK TM4-1 Profibus DP slave - Schneider Electric - myelectric.in
Brand: Schneider Electric
SKU: TM4PDPS1
Price: 65811.24 INR
Availability: InStock

SKU: TM4PDPS1

Original price was: ₹99,714.00.Current price is: ₹65,811.24. Excl. GST

In stock

10 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Looking for the TM4PDPS1 | MODULE NETWORK TM4-1 Profibus DP slave? This genuine Schneider Electric electrical component is built for industrial, commercial, and infrastructure applications, combining proven reliability with full compliance to applicable IEC/IS standards. Key ratings include 2 Poles, IP20 with protective cover in place. Order part number TM4PDPS1 from myelectric.in — a trusted Schneider Electric supplier offering competitive pricing, GST billing, and shipping across India and overseas.

📋 Technical Specifications

Product
Brand	Schneider Electric
Part Number / SKU	TM4PDPS1
Category	Electrical Component
Main
Product or component type	Profibus DP communication module
Complementary
Range compatibility	Modicon M251 Modicon M241
Product compatibility	Modicon M241 logic controller Modicon M251 logic controller
Current consumption	290 mA at 5 V DC for communication bus
Power dissipation in W	1.5 W
Integrated connection type	Profibus DP: female SUB-D 9 connector
Transmission rate	1.5 Mbit/s for bus length of 200 m 500 kbit/s for bus length of 400 m 187.5 kbit/s for bus length of 1000 m 9.6…93.75 kbit/s for bus length of 1200 m 3…12 Mbit/s for bus length of 100 m
Communication port protocol	Profibus DP V0 Profibus DP V1
Insulation	Between bus and internal logic at 1000 V DC
Local signalling	1 LED (green/yellow) for power supply 1 LED (green/red) for communication
Electrical connection	Screw connector terminal for connecting the functional ground SUB-D 9 1 female connector for connecting Profibus
Marking	CE
Surge withstand	1 kV power lines (DC) common mode conforming to IEC 61000-4-5 2 kV power lines (AC) common mode conforming to IEC 61000-4-5 2 kV relay output common mode conforming to IEC 61000-4-5 1 kV I/O common mode conforming to IEC 61000-4-5 1 kV shielded cable common mode conforming to IEC 61000-4-5 0.5 kV power lines (DC) differential mode conforming to IEC 61000-4-5 1 kV power lines (AC) differential mode conforming to IEC 61000-4-5 1 kV relay output differential mode conforming to IEC 61000-4-5 0.5 kV I/O differential mode conforming to IEC 61000-4-5
Mounting support	Top hat type TH35-15 rail conforming to IEC 60715 Top hat type TH35-7.5 rail conforming to IEC 60715 plate or panel with fixing kit
Width	25 mm
Height	90 mm
Depth	90 mm
Product weight	0.1 kg
Environment
Standards	IEC 61131-2 UL 508 EIA-485
Product certifications	C-Tick cULus
Resistance to electrostatic discharge	8 kV in air conforming to IEC 61000-4-2 4 kV on contact conforming to IEC 61000-4-2 8 kV in air conforming to Marine specification (LR, ABS, DNV, GL) 6 kV on contact conforming to Marine specification (LR, ABS, DNV, GL)
Resistance to electromagnetic fields	10 V/m 80 MHz…1 GHz conforming to IEC 61000-4-3 3 V/m 1.4 GHz…2 GHz conforming to IEC 61000-4-3 1 V/m 2…2.7 GHz conforming to IEC 61000-4-3
Resistance to fast transients	2 kV (power lines) conforming to IEC 61000-4-4 2 kV (relay output) conforming to IEC 61000-4-4 1.5 kV (I/O) conforming to IEC 61000-4-4 1 kV (Ethernet line) conforming to IEC 61000-4-4 1 kV (serial link) conforming to IEC 61000-4-4
Resistance to conducted disturbances	10 V 0.15…80 MHz conforming to IEC 61000-4-6 3 V 0.1…80 MHz conforming to Marine specification (LR, ABS, DNV, GL) 10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) conforming to Marine specification (LR, ABS, DNV, GL)
Electromagnetic emission	Conducted emissions – test level: 79 dBμV/m QP/66 dBμV/m AV ( power lines (AC)) at 0.15…0.5 MHz conforming to IEC 55011 Conducted emissions – test level: 73 dBμV/m QP/60 dBμV/m AV ( power lines (AC)) at 0.5…300 MHz conforming to IEC 55011 Conducted emissions – test level: 120…69 dBµV/m QP ( power lines) at 10…150 kHz conforming to IEC 55011 Conducted emissions – test level: 63 dBμV/m QP ( power lines) at 1.5…30 MHz conforming to IEC 55011 Radiated emissions – test level: 40 dBμV/m QP class A at 30…230 MHz conforming to IEC 55011 Radiated emissions – test level: 60…54 dBμV/m QP at 30…100 MHz conforming to Marine specification (LR, ABS, DNV, GL) Radiated emissions – test level: 24 dBμV/m QP at 156…165 MHz conforming to Marine specification (LR, ABS, DNV, GL) Conducted emissions – test level: 79…63 dBμV/m QP ( power lines) at 150…1500 kHz conforming to IEC 55011 Radiated emissions – test level: 47 dBμV/m QP class A at 230…1000 MHz conforming to IEC 55011 Radiated emissions – test level: 80…50 dμV/m QP at 150…30000 kHz conforming to Marine specification (LR, ABS, DNV, GL) Radiated emissions – test level: 54 dBμV/m QP at 100…2000 MHz conforming to Marine specification (LR, ABS, DNV, GL)
Ambient air temperature for operation	-10…55 °C horizontal installation -10…50 °C vertical installation
Ambient air temperature for storage	-25…70 °C
Relative humidity	10…95 %, without condensation (in operation) 10…95 %, without condensation (in storage)
IP degree of protection	IP20 with protective cover in place
Pollution degree	2
Operating altitude	0…2000 m
Storage altitude	0…3000 m
Vibration resistance	1 mm at 5…13.2 Hz on symmetrical rail 3 gn at 8.7…150 Hz on symmetrical rail 1 mm at 5…13.2 Hz on panel mounting 0.7 gn at 13.2…100 Hz on panel mounting
Shock resistance	15 gn for 11 ms
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	5.600 cm
Package 1 Width	11.500 cm
Package 1 Length	17.000 cm
Package 1 Weight	190.000 g
Unit Type of Package 2	S03
Number of Units in Package 2	20
Package 2 Height	30.000 cm
Package 2 Width	30.000 cm
Package 2 Length	40.000 cm
Package 2 Weight	4.478 kg
Contractual warranty
Warranty (in months)	18
