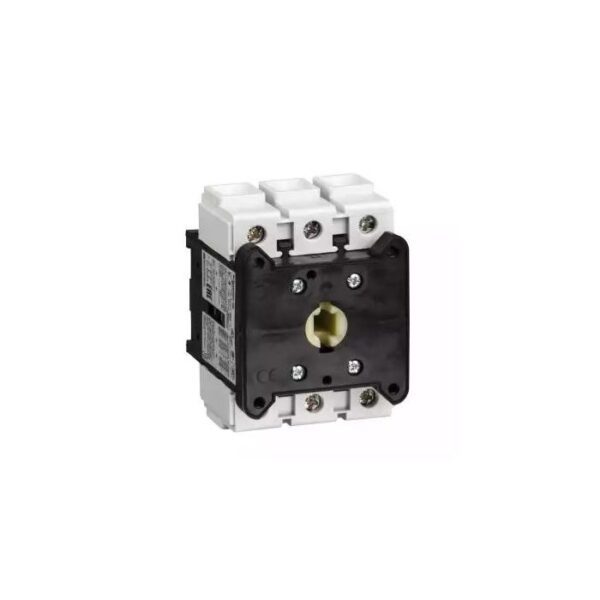

V4 | BODY 3P DISCON SWITCH 80A – Schneider Electric

Name: V4 | BODY 3P DISCON SWITCH 80A - Schneider Electric - myelectric.in
Brand: Schneider Electric
SKU: V4
Price: 5952.80 INR
Availability: BackOrder

SKU: V4

Original price was: ₹10,630.00.Current price is: ₹5,952.80. Excl. GST

Dispatch By : 8 Weeks

17 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Additional Addons/Accessories

-43%

VZ15 | TeSys VARIO – additional earthing block – 80 A – for V3 / V4 – Schneider Electric

Accessories

Schneider Electric

Excl. GST

Add to basket

SKU: VZ15

-44%

KZ74 | DOOR INTERLOCK PIECE – Schneider Electric

All Products

Schneider Electric

Excl. GST

Add to basket

SKU: KZ74

VZ0 TeSys VARIO additional pole 25 A for V0 Schneider Electric odapg114006 se 1500x1500

-38%

VZ4 | TeSys VARIO – additional pole – 80 A – for V4 – Schneider Electric

Accessories

Schneider Electric

Excl. GST

Add to basket

SKU: VZ4

-38%

VZ7 | TeSys VARIO – auxiliary contact block – 1 NC early-break+1 NO late-make – Schneider Electric

Accessories

Schneider Electric

Excl. GST

Add to basket

SKU: VZ7

-27%

VZ9 | TeSys Mini-VARIO and VARIO – terminal shrouds – for V3 / V4 – Schneider Electric

Accessories

Schneider Electric

Excl. GST

Add to basket

SKU: VZ9

-44%

VZ31 | SHAFT EXTENSION PIECE – Schneider Electric

All Products

Schneider Electric

Excl. GST

Add to basket

SKU: VZ31

-43%

VZ12 | TeSys VARIO – additional neutral block – 80 A – for V3 / V4 – Schneider Electric

Accessories

Schneider Electric

Excl. GST

Add to basket

SKU: VZ12

-38%

VZ20 | TeSys VARIO – auxiliary contact block – 1 NO + 1 NO – Schneider Electric

Accessories

Schneider Electric

Excl. GST

Add to basket

SKU: VZ20

-43%

VZ18 | TeSys VARIO – shaft extension – for V3 / V4 / V5 / V6 – Schneider Electric

Accessories

Schneider Electric

Excl. GST

Add to basket

SKU: VZ18

Looking for the V4 | BODY 3P DISCON SWITCH 80A? This genuine Schneider Electric switch from the TeSys range is built for everyday wiring and control, combining proven reliability with full compliance to applicable IEC/IS standards. Key ratings include 57 A AC-23 Ue: 400 V, 690 V AC 50/60 Hz, 3P. Order part number V4 from myelectric.in — a trusted Schneider Electric supplier offering competitive pricing, GST billing, and shipping across India and overseas.

📋 Technical Specifications

Product
Brand	Schneider Electric
Part Number / SKU	V4
Category	Switch
Main
Range	TeSys
Product Name	TeSys VARIO
Device Short Name	V
Product Type	Switch body
Complementary
Mounting Support	Plate Symmetrical rail
Performance Level	High performance
Number of Poles	3P
Contact Type and Composition	3 NO
Network type	DC AC
Network frequency	50/60 Hz
[Ue] IEC Rated Operational Voltage	690 V AC 50/60 Hz
IEC Rated Operational Power in W	15 kW at 230…240 V (AC-3) 22 kW at 400…415 V (AC-3) 30 kW at 500 V (AC-3) 30 kW at 690 V (AC-23A) 37 kW at 500 V (AC-23A) 18.5 kW at 690 V (AC-3) 18.5 kW at 230…240 V (AC-23A) 30 kW at 400…415 V (AC-23A)
[Ie] Rated Operational Current	57 A AC-23 Ue: 400 V
[Ith] Conventional Free Air Thermal Current	80 A
[Ithe] Conventional Enclosed Thermal Current	63 A
Making capacity ( I Rms)	800 A at 400 V AC-21A 800 A at 400 V AC-22A 800 A at 400 V AC-23A
Breaking Capacity	640 A at 400 V (AC-21A) 640 A at 400 V (AC-22A) 640 A at 400 V (AC-23A)
Rated Conditional Short Circuit Current	10 kA at 400 V – associated fuse 80 A aM 10 kA at 400 V – associated fuse 80 A gG
[Icm] Rated Short Circuit Making Capacity	2.1 kA at 400 V at Ipeak
Intermittent duty class	30
Suitability for isolation	Yes
[Uimp] rated impulse withstand voltage	8 kV
[Icw] rated short-time withstand Rms current	960 A at 400 V duration: 1 s
Mechanical Durability	30000 cycles
Electrical Durability	30000 cycles AC-21 30000 cycles DC-1…5
IEC Terminal Connection	Power circuit: screw clamp terminals16 mm² – flexible – with cable end Power circuit: screw clamp terminals25 mm² – solid
Tightening Torque	Power circuit: 4 N.m – on screw clamp terminals
Height	83 mm
Width	60 mm
Depth	65 mm
Product Weight	0.5 kg
Environment
Standards	IEC 60947-3
Product Certifications	UL CSA GL UKCA
Degree of Protection	IP20 conforming to IEC 60529
Protective Treatment	TC
Mechanical Robustness	Vibrations 10…150 Hz (1 gn) conforming to IEC 60068-2-6 Shocks 11 ms (30 Gn) conforming to IEC 60068-2-27
Ambient Air Temperature for Operation	-20…50 °C
Fire Resistance	960 °C conforming to IEC 60695-2-1
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	12.000 cm
Package 1 Width	8.500 cm
Package 1 Length	8.000 cm
Package 1 Weight	297.000 g
Unit Type of Package 2	S02
Number of Units in Package 2	12
Package 2 Height	15.000 cm
Package 2 Width	30.000 cm
Package 2 Length	40.000 cm
Package 2 Weight	3.906 kg
Unit Type of Package 3	P06
Number of Units in Package 3	192
Package 3 Height	75.000 cm
Package 3 Width	60.000 cm
Package 3 Length	80.000 cm
Package 3 Weight	71.844 kg
Contractual warranty
Warranty (in months)	18

⚡ Key Features

80 A current rating — confirmed from product specifications; size wiring and terminals to match or exceed this value.
Manufactured to IS/IEC 60947, IS 8828 (MCBs), IS 13947, IEC 61439 (DBs) — complies with Indian BIS and IEC international safety standards.
BIS certified, CE marked, RoHS compliant — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
Genuine authorised Schneider Electric product — sourced directly from the official distribution network with full manufacturer traceability and warranty.
GST invoice provided for India orders — valid for corporate procurement, government project orders, and public tender supply via myelectric.in.
Worldwide export available — UAE, Singapore, UK, USA, Sri Lanka & more. Contact +91 94814 00316 for bulk pricing and international shipping.

🔗 Compatible Products & Accessories

The following genuine accessories and compatible devices are designed to work with this product. Contact myelectric.in for pricing and availability:

VZ9KZ74KZ81VZ7VZ12VZ20VZ15VZ4VCFXGE2VZ18VZ31

❓ Frequently Asked Questions

Q: What is the significance of the 80 A rating on the V4?

A: The 80 A rating is the device’s maximum continuous current carrying capacity under specified conditions (typically 40°C ambient). For circuit design, use 80% of this value as the design current to allow for derating due to grouping, temperature, and future load growth.
