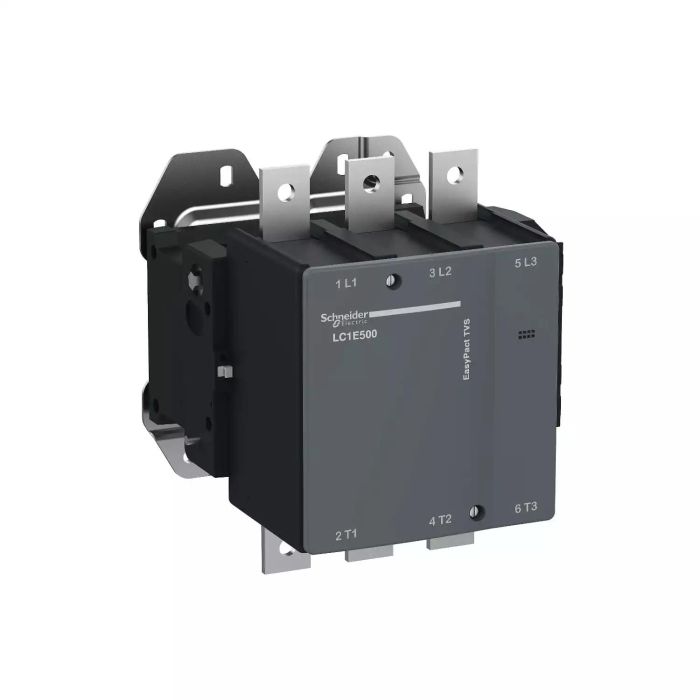

LC1E500F7 | 3P contacteur EasyPact TVS 250KW 400V – Schneider Electric

Name: LC1E500F7 | 3P contacteur EasyPact TVS 250KW 400V - Schneider Electric - myelectric.in
Brand: Schneider Electric
SKU: LC1E500F7
Price: 96610.25 INR
Availability: BackOrder

SKU: LC1E500F7

Original price was: ₹224,675.00.Current price is: ₹96,610.25. Excl. GST

Dispatch By : 3 Weeks

11 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Additional Addons/Accessories

-15%

LAETSD | EasyPact TVS – time delay – on delay – 1 NO + 1 NC – Schneider Electric

Auxiliary and Accessories

Schneider Electric

Excl. GST

Add to basket

SKU: LAETSD

-58%

LAEN20 | EasyPact TVS – auxiliary contact block – 2 NO – screw-clamps terminals – Schneider Electric

Add On Block

Schneider Electric

Excl. GST

Add to basket

SKU: LAEN20

-58%

LAEN11 | EasyPact TVS – auxiliary contact block – 1 NO + 1 NC – screw-clamps terminals – Schneider Electric

Add On Block

Schneider Electric

Excl. GST

Add to basket

SKU: LAEN11

-58%

LAEN22 | EasyPact TVS – auxiliary contact block – 2 NO + 2 NC – screw-clamps terminals – Schneider Electric

Add On Block

Schneider Electric

Excl. GST

Add to basket

SKU: LAEN22

-58%

LAEN02 | EasyPact TVS – auxiliary contact block – 2 NC – screw-clamps terminals – Schneider Electric

Add On Block

Schneider Electric

Excl. GST

Add to basket

SKU: LAEN02

Looking for the LC1E500F7 | 3P contacteur EasyPact TVS 250KW 400V? This genuine Schneider Electric electrical component from the Easy TeSys range is built for industrial, commercial, and infrastructure applications, combining proven reliability with full compliance to applicable IEC/IS standards. Key ratings include 500 A, Power circuit: <= 690 V AC 50/60 Hz, 3P. Order part number LC1E500F7 from myelectric.in — a trusted Schneider Electric supplier offering competitive pricing, GST billing, and shipping across India and overseas.

📋 Technical Specifications

Product
Brand	Schneider Electric
Part Number / SKU	LC1E500F7
Category	Electrical Component
Main
Range	Easy TeSys
Range of product	Easy TeSys Control
Product or component type	Contactor
Device short name	LC1E
Contactor application	Motor control Resistive load
Utilisation category	AC-3 AC-3e AC-1
Poles description	3P
[Ue] rated operational voltage	Power circuit: <= 690 V AC 50/60 Hz
[Ie] rated operational current	500 A (at <55 °C) at <= 440 V AC AC-3 for power circuit 400 A (at <55 °C) at <= 440 V AC AC-3e for power circuit 700 A (at <40 °C) at <= 440 V AC AC-1 for power circuit
[Uc] control circuit voltage	110 V AC 50/60 Hz
Complementary
Motor power kW	147 kW at 220/230 V AC 50/60 Hz 250 kW at 380/400 V AC 280 kW at 415 V AC 295 kW at 440 V AC 335 kW at 500 V AC 355 kW at 660/690 V AC
Pole contact composition	3 NO
[Ith] conventional free air thermal current	700 A (at 40 °C) for power circuit
Irms rated making capacity	5000 A at 440 V AC for power circuit conforming to IEC 60947-4-1
Rated breaking capacity	4000 A at 440 V for power circuit conforming to IEC 60947
[Icw] rated short-time withstand current	4200 A 40 °C – 10 s for power circuit
Associated fuse rating	800 A gG at <= 690 V coordination type 1 for power circuit
Average impedance	0.18 mOhm – Ith 700 A 50 Hz for power circuit
Power dissipation per pole	45 W AC-3 88 W AC-1
[Ui] rated insulation voltage	690 V conforming to IEC 60947-4-1
Overvoltage category	III
Pollution degree	3
[Uimp] rated impulse withstand voltage	8 kV coil not connected to the power circuit conforming to IEC 60947
Mechanical durability	4000000 cycles
Electrical durability	250000 cycles AC-1 600000 cycles AC-3
Control circuit type	AC at 50/60 Hz
Control circuit voltage limits	0.85…1.1 Uc (-5…55 °C):operational 50/60 Hz 0.35…0.5 Uc (-5…55 °C):drop-out 50/60 Hz
Inrush power in VA	1100 VA 50 Hz cos phi 0.9 (at 20 °C) 1100 VA 60 Hz cos phi 0.9 (at 20 °C)
Hold-in power consumption in VA	18 VA 50 Hz cos phi 0.9 (at 20 °C) 18 VA 60 Hz cos phi 0.9 (at 20 °C)
Heat dissipation	18 W for control circuit 18 W
Operating time	100…170 ms on opening 40…75 ms on closing
Maximum operating rate	2400 cyc/h 55 °C
Connections – terminals	Power circuit: cable with lug 2 1…4 mm² – external diameter: 240 mm – cable stiffness: flexible without cable end Power circuit: bars 2 1…4 mm² – cable stiffness: flexible without cable end – busbar cross section: 40 x 5 mm Control circuit: screw clamp terminals 1 1…4 mm² – cable stiffness: flexible without cable end Control circuit: screw clamp terminals 2 1…4 mm² – cable stiffness: flexible without cable end Control circuit: screw clamp terminals 2 1…2.5 mm² – cable stiffness: flexible with cable end Control circuit: screw clamp terminals 1 1…2.5 mm² – cable stiffness: flexible with cable end Control circuit: screw clamp terminals 1 1…4 mm² – external diameter: 240 mm – cable stiffness: solid without cable end Control circuit: screw clamp terminals 2 1…4 mm² – cable stiffness: solid without cable end – busbar cross section: 40 x 5 mm
Tightening torque	Control circuit: 1.2 N.m Power circuit: 35 N.m
Auxiliary contact composition	Without
Mounting support	Plate
Environment
Standards	EN/IEC 60947-1 EN/IEC 60947-4-1 GB/T 14048.1 GB/T 14048.4
Product certifications	CB Scheme CCC CE EAC
IP degree of protection	IP00 conforming to IEC 60529
Permissible ambient air temperature around the device	-20…70 °C at Uc -60…80 °C storage -5…55 °C operation
Operating altitude	3000 m without derating
Fire resistance	850 °C conforming to IEC 60695-2-1
Mechanical robustness	Shocks contactor closed (15 Gn for 11 ms) Vibrations contactor open (2 Gn, 5…300 Hz) Vibrations contactor closed (4 Gn, 5…300 Hz) Shocks contactor open (9 Gn for 11 ms)
Height	400 mm
Width	233 mm
Depth	232 mm
Product weight	11.35 kg
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	24.5 cm
Package 1 Width	28.5 cm
Package 1 Length	28.5 cm
Package 1 Weight	11.35 kg
Contractual warranty
Warranty (in months)	18

⚡ Key Features

400V AC operating voltage — compatible with standard LV distribution voltages used in Indian industrial installations.
Manufactured to IS/IEC 60947, IS 8828 (MCBs), IS 13947, IEC 61439 (DBs) — complies with Indian BIS and IEC international safety standards.
BIS certified, CE marked, RoHS compliant — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
Genuine authorised Schneider Electric product — sourced directly from the official distribution network with full manufacturer traceability and warranty.
GST invoice provided for India orders — valid for corporate procurement, government project orders, and public tender supply via myelectric.in.
Worldwide export available — UAE, Singapore, UK, USA, Sri Lanka & more. Contact +91 94814 00316 for bulk pricing and international shipping.
