MEHVBAPP113A48 | APP – BOX 3PH 11.3 kVAr 480V 50Hz – Schneider Electric

Name: MEHVBAPP113A48 | APP - BOX 3PH 11.3 kVAr 480V 50Hz - Schneider Electric - myelectric.in
Brand: Schneider Electric
SKU: MEHVBAPP113A48
Price: 5898.74 INR
Availability: BackOrder

SKU: MEHVBAPP113A48

Original price was: ₹15,523.00.Current price is: ₹5,898.74. Excl. GST

Dispatch By : 6 Weeks

16 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Additional Addons/Accessories

-53%

VPL06N | Varplus Logic Controller, 6 Step Outputs – Schneider Electric

All Products

Schneider Electric

Excl. GST

Add to basket

SKU: VPL06N

-62%

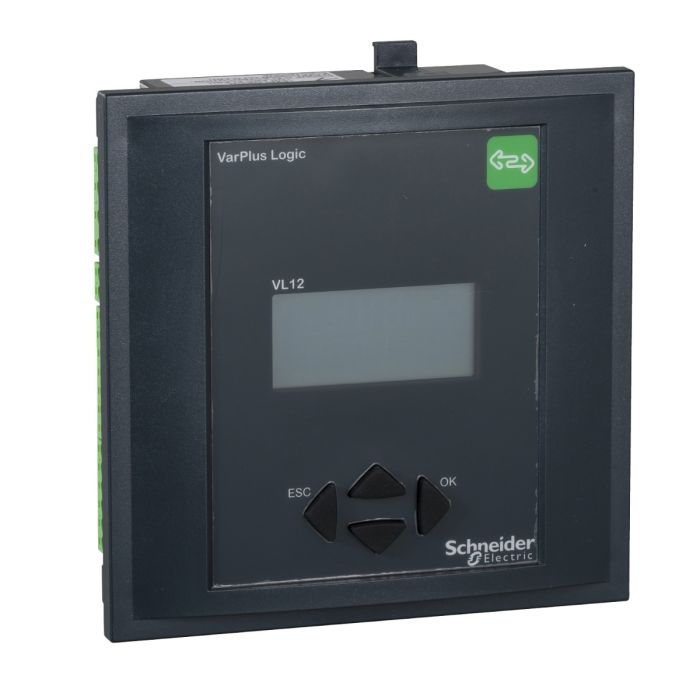

VPL12N | Varplus Logic Controller, 12 Step Output – Schneider Electric

All Products

Schneider Electric

Excl. GST

Add to basket

SKU: VPL12N

Sourced through authorised channels, the Schneider Electric MEHVBAPP113A48 power factor correction / capacitor from the PowerLogic range delivers dependable performance for industrial, commercial, and infrastructure applications. Key ratings include 13.6 A, 480 V. myelectric.in stocks the MEHVBAPP113A48 | APP – BOX 3PH 11.3 kVAr 480V 50Hz for contractors, panel builders, and project buyers — buy online with GST invoice, or request a bulk quote for domestic supply and export to UAE, Singapore, UK, USA, Sri Lanka and more.

📋 Technical Specifications

Product
Brand	Schneider Electric
Part Number / SKU	MEHVBAPP113A48
Category	Power Factor Correction / Capacitor
Main
Range	PowerLogic
Product name	PowerLogic PFC Capacitor
Product or component type	Super heavy duty capacitor
Device application	Direct connection with machine Fixed bank Stand alone PFC equipment
Complementary
Reactive power rating	11.3 kvar
Rated voltage	480 V
[In] rated current	13.6 A
Network frequency	50 Hz
Capacitance tolerance	– 5 % to 10 %
[Imp] maximum permanent current	2.0 x In
Inrush current	Up to 350 x In
Service life in hours	150000 h
Impregnation material	Oil Non-PCB
Connections – terminals	Bushing terminals for large cables Direct busbar mounting for banking
Capacitor connection	3-phase delta connection
Safety function	Non-self healing (NSH) Discharge device
fixing mode	Mounting cleats
Length	205 mm
Height	330 mm
Width	125 mm
Product weight	5.5 kg
Environment
Standards	IS 13585-1994
Ambient air temperature for operation	-10…50 °C
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	28.5 cm
Package 1 Width	12.5 cm
Package 1 Length	32 cm
Package 1 Weight	9.5 kg
Contractual warranty
Warranty (in months)	18

⚡ Key Features

480V AC operating voltage — compatible with standard LV distribution voltages used in Indian industrial installations.
Manufactured to IS/IEC 60947, IS 8828 (MCBs), IS 13947, IEC 61439 (DBs) — complies with Indian BIS and IEC international safety standards.
BIS certified, CE marked, RoHS compliant — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
Genuine authorised Schneider Electric product — sourced directly from the official distribution network with full manufacturer traceability and warranty.
GST invoice provided for India orders — valid for corporate procurement, government project orders, and public tender supply via myelectric.in.
Worldwide export available — UAE, Singapore, UK, USA, Sri Lanka & more. Contact +91 94814 00316 for bulk pricing and international shipping.
