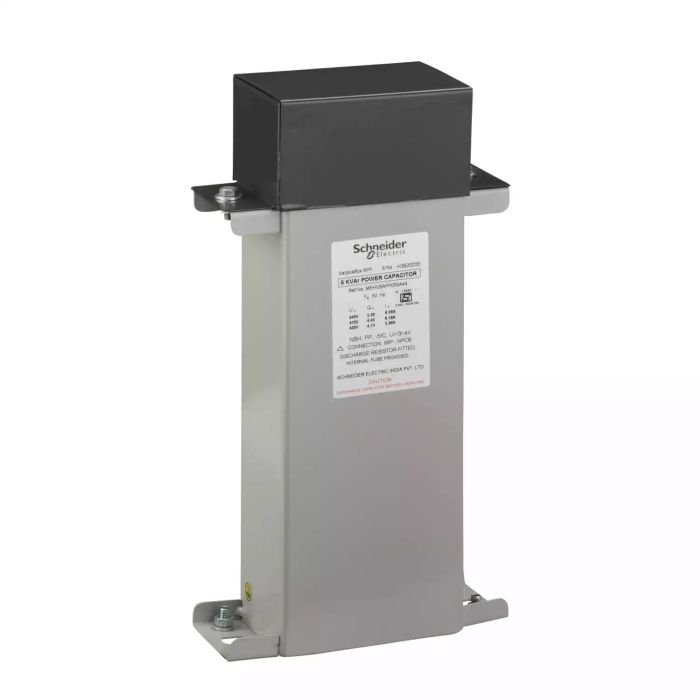

MEHVBHDY250A44 | MPP-H Duty Box 25 kvar 440V 3Ph 50Hz – Schneider Electric

Name: MEHVBHDY250A44 | MPP-H Duty Box 25 kvar 440V 3Ph 50Hz - Schneider Electric - myelectric.in
Brand: Schneider Electric
SKU: MEHVBHDY250A44
Price: 24182.00 INR
Availability: OutOfStock

SKU: MEHVBHDY250A44

₹24,182.00 Excl. GST

Out of stock

18 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Additional Addons/Accessories

-62%

VPL12N | Varplus Logic Controller, 12 Step Output – Schneider Electric

All Products

Schneider Electric

Excl. GST

Add to basket

SKU: VPL12N

-53%

VPL06N | Varplus Logic Controller, 6 Step Outputs – Schneider Electric

All Products

Schneider Electric

Excl. GST

Add to basket

SKU: VPL06N

Looking for the MEHVBHDY250A44 | MPP-H Duty Box 25 kvar 440V 3Ph 50Hz? This genuine Schneider Electric power factor correction / capacitor from the PowerLogic range is built for industrial, commercial, and infrastructure applications, combining proven reliability with full compliance to applicable IEC/IS standards. Key ratings include 32.8 A, 440 V. Order part number MEHVBHDY250A44 from myelectric.in — a trusted Schneider Electric supplier offering competitive pricing, GST billing, and shipping across India and overseas.

📋 Technical Specifications

Product
Brand	Schneider Electric
Part Number / SKU	MEHVBHDY250A44
Category	Power Factor Correction / Capacitor
Main
Range	PowerLogic
Product name	PowerLogic PFC Capacitor
Product or component type	Heavy duty capacitor
Device application	Direct connection with machine Stand alone PFC equipment Fixed bank
Complementary
Reactive power rating	25 kvar
Rated voltage	440 V
[In] rated current	32.8 A
Network frequency	50 Hz
Dielectric loss	0.2
Capacitance tolerance	– 5 % to 10 %
[Imp] maximum permanent current	1.8 x In
Inrush current	Up to 250 x In
Maximum switching operation per year	7000
Service life in hours	130000 h
Impregnation material	Non-PCB Bio-degradable PUR resin
Operating altitude	2000 m
Connections – terminals	Direct busbar mounting for banking Bushing terminals for large cables
Capacitor connection	3-phase delta connection
Safety function	Self healing Pressure sensitive disconnector for every phase Discharge device
fixing mode	Mounting cleats
Depth	153 mm
Height	355 mm
Width	309 mm
Product weight	7.5 kg
Environment
Standards	IS 13340-1993 IS 13341-1992 IEC 60831-1/2
Ambient air temperature for operation	-25…55 °C
Relative humidity	95 %
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	17.8 cm
Package 1 Width	33 cm
Package 1 Length	37.8 cm
Package 1 Weight	7.2 kg
Contractual warranty
Warranty (in months)	18

⚡ Key Features

440V AC operating voltage — compatible with standard LV distribution voltages used in Indian industrial installations.
Manufactured to IS/IEC 60947, IS 8828 (MCBs), IS 13947, IEC 61439 (DBs) — complies with Indian BIS and IEC international safety standards.
BIS certified, CE marked, RoHS compliant — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
Genuine authorised Schneider Electric product — sourced directly from the official distribution network with full manufacturer traceability and warranty.
GST invoice provided for India orders — valid for corporate procurement, government project orders, and public tender supply via myelectric.in.
Worldwide export available — UAE, Singapore, UK, USA, Sri Lanka & more. Contact +91 94814 00316 for bulk pricing and international shipping.
