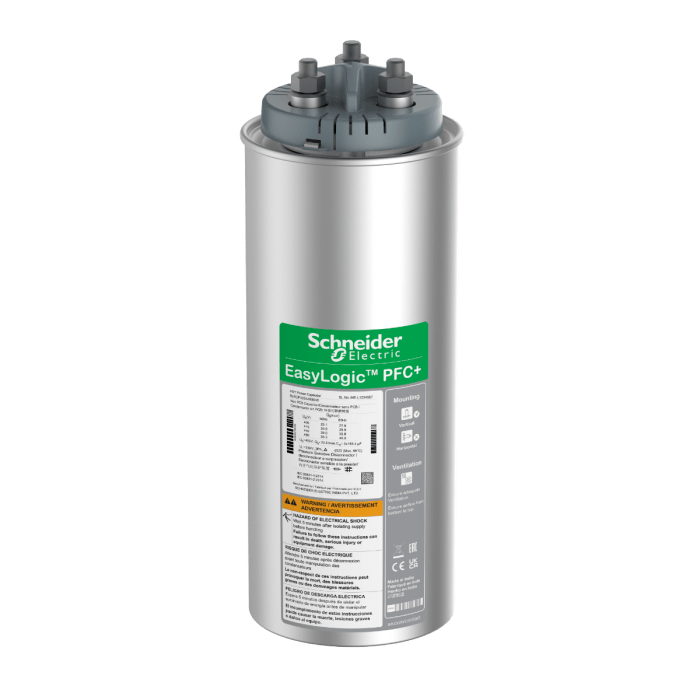

MEHVCPDY067A48 | MPP-H Duty Can 6.7 kvar 480V 3Ph 50Hz – Schneider Electric

Name: MEHVCPDY067A48 | MPP-H Duty Can 6.7 kvar 480V 3Ph 50Hz - Schneider Electric - myelectric.in
Brand: Schneider Electric
SKU: MEHVCPDY067A48
Price: 9943.00 INR
Availability: OutOfStock

SKU: MEHVCPDY067A48

₹9,943.00 Excl. GST

Out of stock

10 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Additional Addons/Accessories

-62%

VPL12N | Varplus Logic Controller, 12 Step Output – Schneider Electric

All Products

Schneider Electric

Excl. GST

Add to basket

SKU: VPL12N

-53%

VPL06N | Varplus Logic Controller, 6 Step Outputs – Schneider Electric

All Products

Schneider Electric

Excl. GST

Add to basket

SKU: VPL06N

Looking for the MEHVCPDY067A48 | MPP-H Duty Can 6.7 kvar 480V 3Ph 50Hz? This genuine Schneider Electric power factor correction / capacitor is built for industrial, commercial, and infrastructure applications, combining proven reliability with full compliance to applicable IEC/IS standards. Key ratings include 480 V, IP20. Order part number MEHVCPDY067A48 from myelectric.in — a trusted Schneider Electric supplier offering competitive pricing, GST billing, and shipping across India and overseas.

📋 Technical Specifications

Product
Brand	Schneider Electric
Part Number / SKU	MEHVCPDY067A48
Category	Power Factor Correction / Capacitor
Main
Product or component type	Heavy duty capacitor
Device application	PFC equipment assembly
Complementary
Reactive power rating	6.7 kvar
Rated voltage	480 V
Network frequency	50 Hz 60 Hz
Dielectric loss	0.2
Capacitance tolerance	– 5 % to 10 %
[Imp] maximum permanent current	1.6 x In
Inrush current	220 x In
Maximum switching operation per year	6000
Service life in hours	120000 h
Impregnation material	Non-PCB Biodegradable
Operating altitude	0…2000 m
Diameter	63 mm
Height	245 mm
Product weight	0.9 kg
Environment
Standards	IEC 60831-1 IEC 60831-2
Ambient air temperature for operation	-25…55 °C
IP degree of protection	IP20
Relative humidity	0…95 %
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	30 cm
Package 1 Width	39.7 cm
Package 1 Length	59.8 cm
Package 1 Weight	1.2 kg
Unit Type of Package 2	S04
Number of Units in Package 2	16
Package 2 Height	30 cm
Package 2 Width	40 cm
Package 2 Length	60 cm
Package 2 Weight	20.2 kg
Contractual warranty
Warranty (in months)	18

⚡ Key Features

480V AC operating voltage — compatible with standard LV distribution voltages used in Indian industrial installations.
Manufactured to IS/IEC 60947, IS 8828 (MCBs), IS 13947, IEC 61439 (DBs) — complies with Indian BIS and IEC international safety standards.
BIS certified, CE marked, RoHS compliant — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
Genuine authorised Schneider Electric product — sourced directly from the official distribution network with full manufacturer traceability and warranty.
GST invoice provided for India orders — valid for corporate procurement, government project orders, and public tender supply via myelectric.in.
Worldwide export available — UAE, Singapore, UK, USA, Sri Lanka & more. Contact +91 94814 00316 for bulk pricing and international shipping.
