LC1E80M7 | Easy TeSys Contactor

Product Description

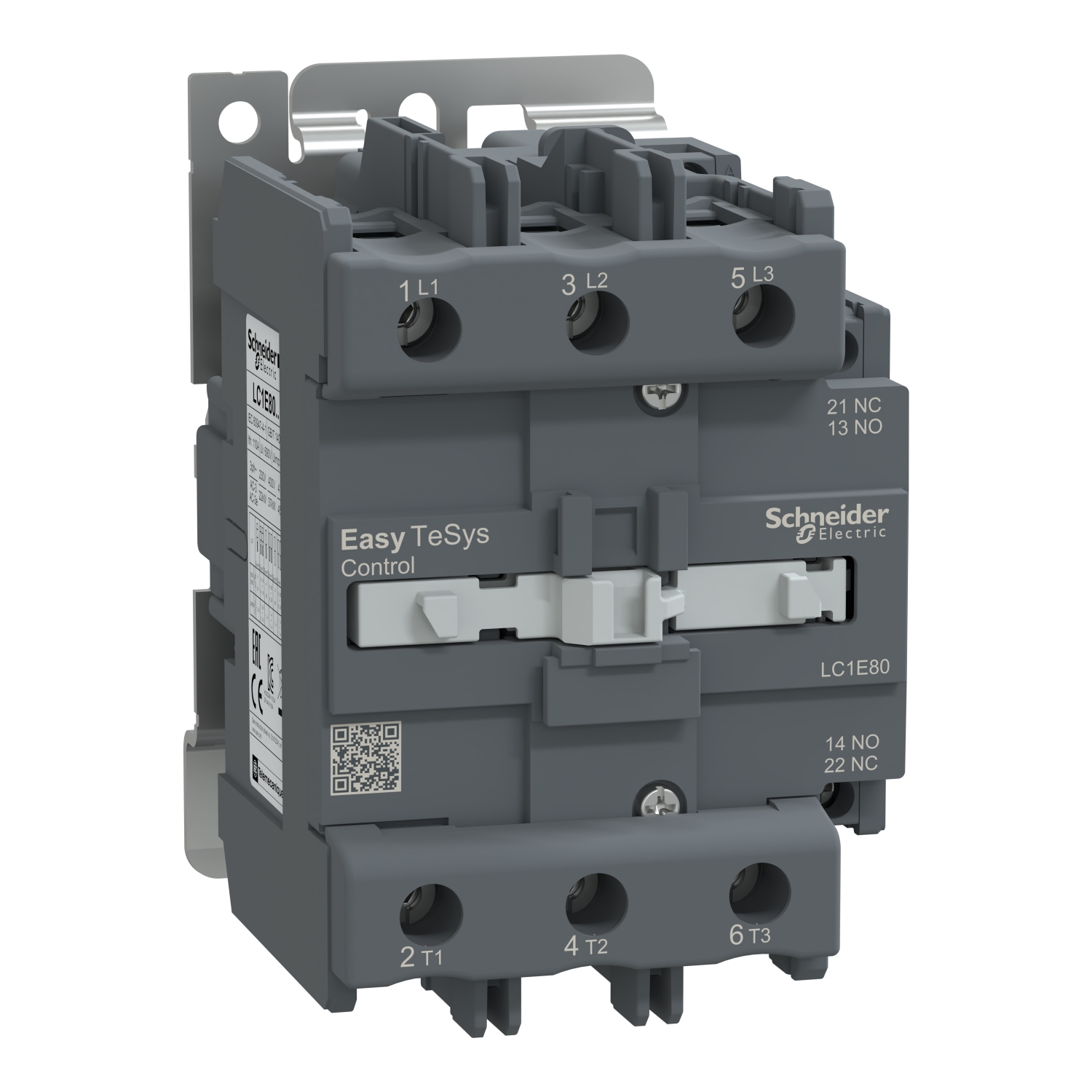

The LC1E80M7 is a 3-pole (3 NO) contactor from Schneider Electric’s Easy TeSys series, designed for reliable switching of electrical loads. It is suitable for AC-3 applications and operates at voltages up to 440 V with a current rating of 80 A. The contactor features a 220 V AC coil, making it ideal for industrial and commercial applications.

Key Features

• Type: Contactor
• Series: Easy TeSys
• Poles: 3P (3 Normally Open – NO)
• Rated Operational Voltage (Ue): Up to 440 V AC
• Rated Operational Current (Ie): 80 A
• Coil Voltage: 220 V AC
• Application Category: AC-3 (Squirrel cage motors: starting, switching off)
• Mechanical Durability: High number of mechanical operations
• Electrical Durability: High number of electrical operations
• Mounting: Screw mounting or snap-on mounting
• Terminal Type: Screw terminals
• Dimensions: Compact design for space-saving installation
• Standards Compliance: IEC/EN 60947-4-1, UL 508, CSA C22.2 No. 14
• Environmental Protection: IP20 (finger-safe protection)
• Operating Temperature: -25°C to +60°C
• Storage Temperature: -40°C to +85°C

Applications

The LC1E80M7 contactor is widely used in various applications, including:

• Motor control in industrial machinery
• HVAC systems
• Pump control
• Compressor control
• Lighting control
• Power distribution systems

Benefits

• Reliable and durable performance
• Easy installation and maintenance
• Compact design for space optimization
• Compliance with international standards
• Versatile for a wide range of applications

Additional Resources

For more details, refer to the Schneider Electric website or the product datasheet.
