LC1E120M5 | Easy TeSys Contactor

Product Description

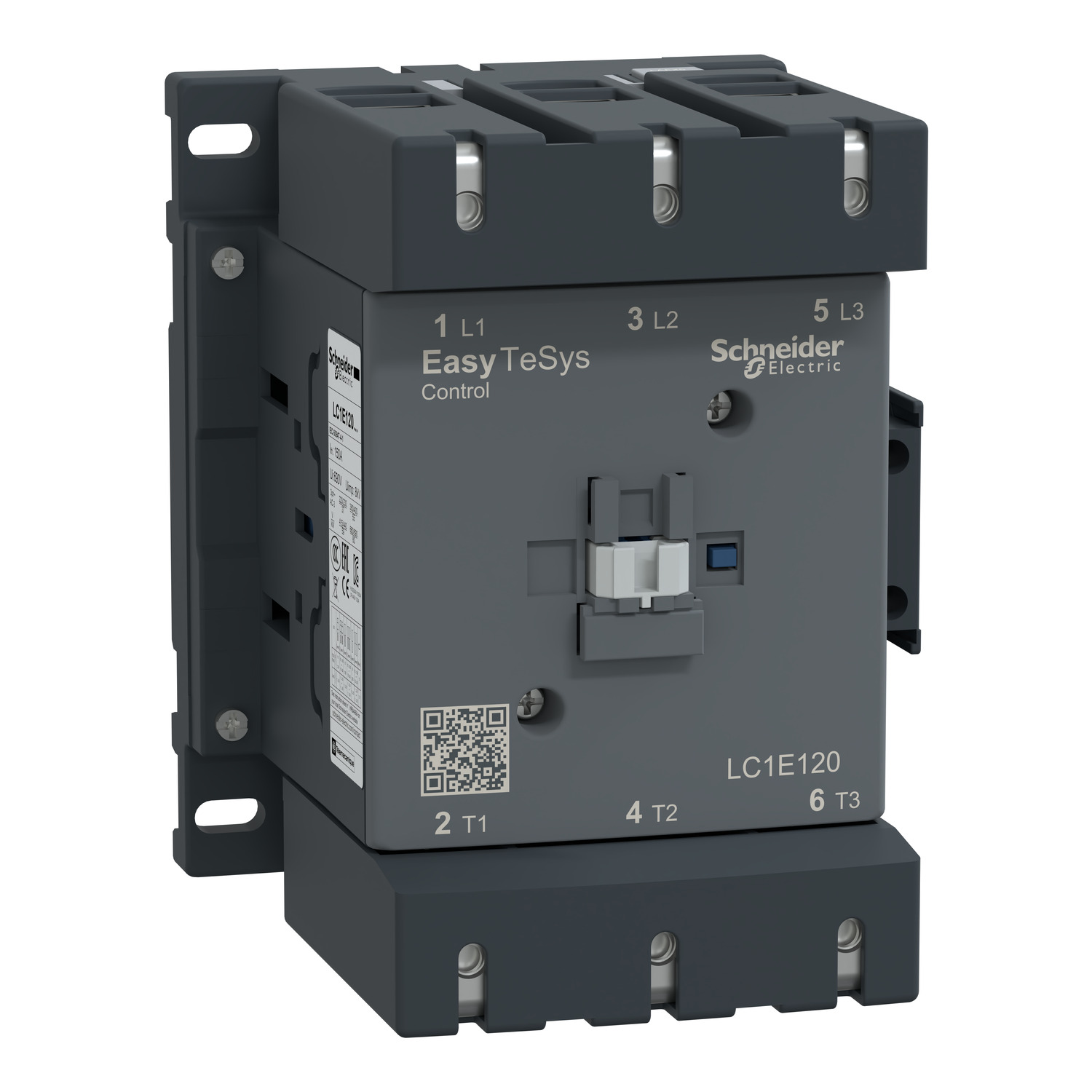

The LC1E120M5 is a 3-pole (3 NO) contactor from Schneider Electric’s Easy TeSys series, designed for reliable switching and control of electrical loads. It is suitable for AC-3 applications, such as controlling three-phase motors, and operates at voltages up to 440 V with a current rating of 120 A. The contactor features a 220 V AC coil, ensuring compatibility with standard control circuits.

Key Features

• Type: Contactor
• Series: Easy TeSys
• Number of Poles: 3 (3 Normally Open – NO)
• Rated Operational Voltage (Ue): Up to 440 V AC
• Rated Operational Current (Ie): 120 A
• Utilization Category: AC-3 (for squirrel cage motors)
• Coil Voltage: 220 V AC
• Mechanical Durability: High number of mechanical operations
• Electrical Durability: High number of electrical operations under load
• Mounting: Screw mounting or snap-on mounting (with optional accessories)
• Terminal Type: Screw terminals for secure connections
• Environmental Compliance: RoHS compliant, meets international standards
• Safety Features: Integrated arc suppression for safe operation
• Dimensions: Compact design for space-saving installation
• Weight: Lightweight for easy handling

Applications

The LC1E120M5 contactor is ideal for use in industrial and commercial applications, including:

• Motor control in HVAC systems
• Pump and fan control
• Conveyor systems
• Industrial machinery
• Power distribution systems

Technical Specifications

Additional Information

For more details, including wiring diagrams, installation instructions, and technical support, visit the official Schneider Electric website or contact your local Schneider Electric representative.
