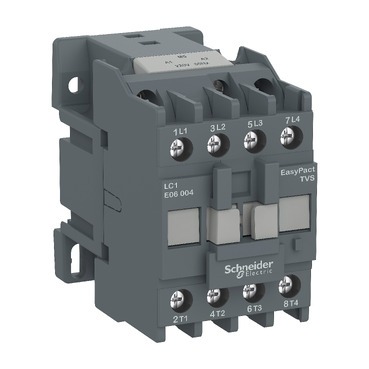

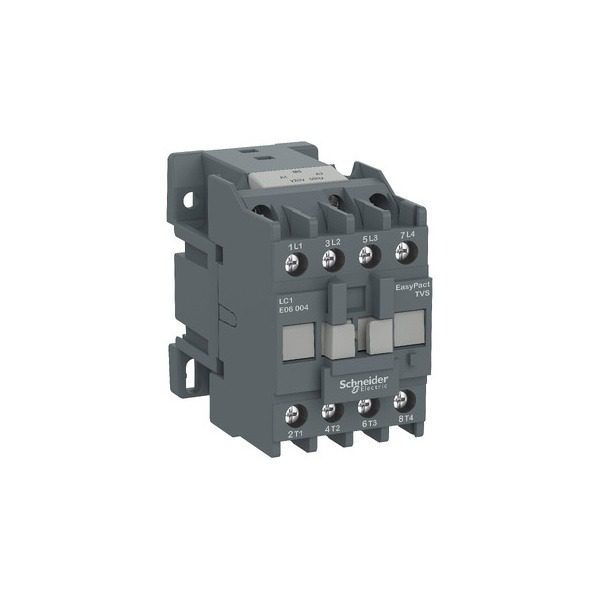

LC1E12004M5WBIN | Easy TeSys contactor 4P CTR 32A AC1(4NO)220V 50Hz WB – Schneider Electric

Name: Schneider Electric 32A 4P Contactor LC1E12004M5WBIN | 4NO
Brand: Schneider Electric
SKU: LC1E12004M5WBIN
Price: 1413.00 INR
Availability: InStock

SKU: LC1E12004M5WBIN

Original price was: ₹3,140.00.Current price is: ₹1,413.00. Excl. GST

In stock

11 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

📋 Technical Specifications

Parameter	Value
Brand	Schneider Electric
Part Number / SKU	LC1E12004M5WBIN
Category	Contactor
Contact Configuration	4 NO (Normally Open)
Current Rating	32 A
Voltage Rating	220V AC
Poles	4 Poles
Frequency	50 Hz
Standard	IEC 60947-4-1 / IS 13947-4-1
Certifications	BIS certified, CE marked, RoHS compliant

⚡ Key Features

32 A AC-3 rated — suits up to a 15 kW squirrel-cage induction motor at 415V for direct-on-line (DOL) starting and running.
4 Poles main contacts with silver-alloy (AgSnO₂) tips — rated for AC-3 duty (DOL motor starting/stopping); low contact resistance reduces heat at rated current.
Manufactured to IEC 60947-4-1 / IS 13947-4-1 — complies with the applicable Indian BIS and IEC international standards for this product category.
BIS certified, CE marked, RoHS compliant — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
Genuine authorised Schneider Electric product — sourced directly from the official distribution network with full manufacturer traceability and warranty.
GST invoice provided for India orders — valid for corporate procurement, government project orders, and public tender supply via myelectric.in.
Worldwide export available — UAE, Singapore, UK, USA, Sri Lanka & more. Contact +91 94814 00316 for bulk pricing and international shipping.

❓ Frequently Asked Questions

Q: Is the LC1E12004M5WBIN rated 32 A for AC-3 motor duty or AC-1 resistive duty?

A: The 32 A rating of this Schneider Electric contactor applies to AC-3 duty (squirrel cage motor starting and running). For AC-1 (resistive/non-inductive) loads, the current can be up to ~1.3× the AC-3 rating. AC-4 (plugging/reversing) requires significant de-rating — consult the Schneider Electric selection table.

Q: What does the 4 NO (Normally Open) contact configuration on the LC1E12004M5WBIN mean?

A: These contacts change state when the device is operated or energised. Size the contact for the actual switched load — pilot duty ratings are typically lower than the main contact rating.

Q: Can multiple LC1E12004M5WBIN contactors be wired for star-delta starting?

A: Yes. Star-delta starters use three contactors: main (KM1), star (KM2), and delta (KM3). The Schneider Electric contactor series supports mechanical and electrical interlocking accessories that prevent simultaneous energisation of star and delta contactors — critical for safety. Ensure all three contactors are rated correctly for the motor FLC and star-delta transition current.

Q: What is the electrical and mechanical life of the LC1E12004M5WBIN?

A: Schneider Electric contactors are rated for millions of operations: typically 10–30 million mechanical operations and 1–3 million electrical operations at rated current and voltage (AC-3 duty). High-frequency switching applications (>10 operations/hour) require checking the specific thermal capacity of the contactor for continuous duty without overheating.

Q: Can the LC1E12004M5WBIN be used for reversing duty (forward/reverse motor control)?

A: Contactors used for reversing must be wired with two contactors interlocked so only one can energise at a time. The Schneider Electric series provides mechanical interlock kits that physically prevent both contactors from closing simultaneously — mandatory for reversing and brake applications to prevent phase-to-phase short circuits.
