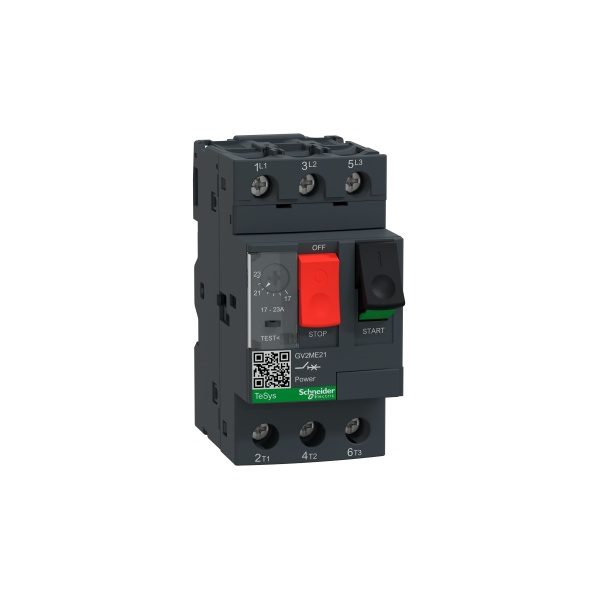

GV2ME21 Motor Circuit Breaker – Schneider Electric
Product Overview
The GV2ME21 is a motor circuit breaker from the TeSys GV2 series by Schneider Electric. It is designed to provide reliable protection for motor circuits, ensuring safety and efficiency in industrial applications. This 3-pole thermal magnetic circuit breaker is rated for a current range of 17-23 A and features screw clamp terminals for secure connections.
Key Features
- Type: Motor Circuit Breaker
- Series: TeSys GV2
- Number of Poles: 3P (3-Pole)
- Current Rating: 17-23 A
- Tripping Mechanism: Thermal Magnetic
- Terminal Type: Screw Clamp Terminals
- Protection: Provides overload and short-circuit protection for motors
- Mounting: DIN Rail Mounting
- Compliance: Meets international standards for safety and performance
- Application: Suitable for use in motor control centers, industrial machinery, and other motor-driven equipment
Technical Specifications
| Parameter | Value |
|---|---|
| Rated Current (In) | 17-23 A |
| Rated Voltage (Ue) | 690 V AC |
| Rated Insulation Voltage (Ui) | 690 V AC |
| Rated Frequency | 50/60 Hz |
| Breaking Capacity (Icu) | 100 kA at 415 V AC |
| Mechanical Life | 20,000 cycles |
| Electrical Life | 10,000 cycles |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Weight | Approx. 0.5 kg |
Applications
The GV2ME21 motor circuit breaker is ideal for protecting motors in various industrial applications, including:
- Motor Control Centers (MCCs)
- Industrial Machinery
- Pumps and Fans
- Conveyor Systems
- Compressors
Benefits
- Ensures reliable motor protection against overloads and short circuits
- Easy to install and maintain with DIN rail mounting
- Durable construction for long service life
- Complies with international safety standards
- Versatile application in various industrial environments
Ordering Information
Product Code: GV2ME21
Manufacturer: Schneider Electric
Availability: Available through authorized Schneider Electric distributors and retailers.
Warranty
Schneider Electric offers a standard warranty on the GV2ME21 motor circuit breaker. Please refer to the manufacturer’s warranty policy for detailed terms and conditions.
Contact Information
For more information or to purchase the GV2ME21 motor circuit breaker, please contact Schneider Electric or visit their official website.
