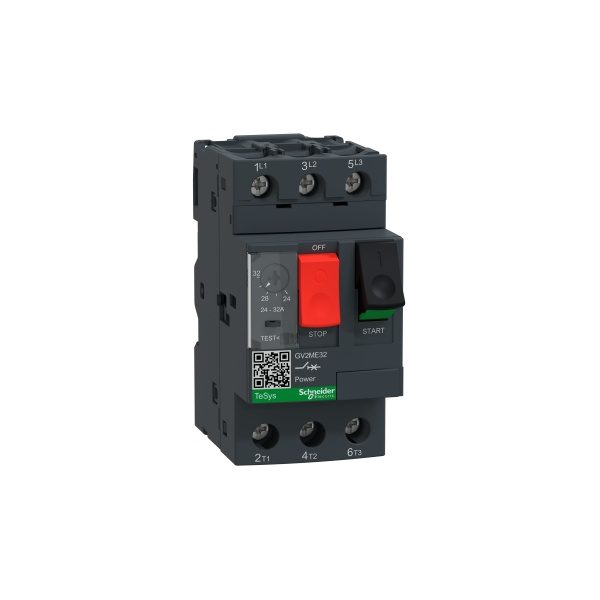

GV2ME32 Motor Circuit Breaker – Schneider Electric
Product Overview
The GV2ME32 is a motor circuit breaker from the TeSys GV2 series by Schneider Electric. It is designed to provide reliable protection for motors and circuits in industrial applications. This 3-pole thermal magnetic circuit breaker is suitable for a current range of 24-32 A and features screw clamp terminals for secure connections.
Key Features
- Type: Motor Circuit Breaker
- Series: TeSys GV2
- Number of Poles: 3P (3 Poles)
- Current Rating: 24-32 A
- Tripping Mechanism: Thermal Magnetic
- Terminal Type: Screw Clamp Terminals
- Protection: Motor and Circuit Protection
- Mounting: DIN Rail Mounting
- Standards Compliance: IEC/EN 60947-2, IEC/EN 60947-4-1
- Operating Temperature: -25°C to +60°C
- Storage Temperature: -40°C to +85°C
- Mechanical Life: 20,000 cycles
- Electrical Life: 10,000 cycles
- Weight: Approximately 0.5 kg
Applications
The GV2ME32 motor circuit breaker is ideal for use in various industrial applications, including:
- Motor protection in machinery and equipment
- Circuit protection in control panels
- Protection of electrical installations
- Use in HVAC systems, pumps, and compressors
Benefits
- Reliable motor and circuit protection
- Easy installation with DIN rail mounting
- Secure connections with screw clamp terminals
- Compliance with international standards
- Durable construction for long service life
Dimensions
Dimensions: 90 mm (H) x 45 mm (W) x 78 mm (D)
Safety Information
Always ensure that the installation and maintenance of the GV2ME32 motor circuit breaker are performed by qualified personnel in accordance with local regulations and safety standards.
