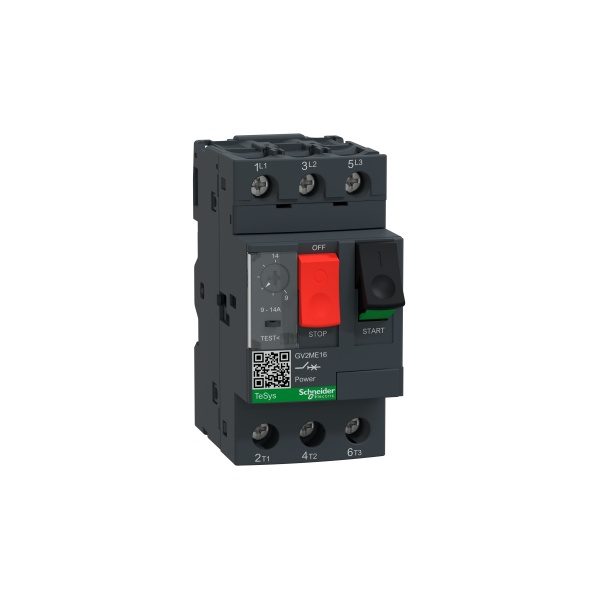

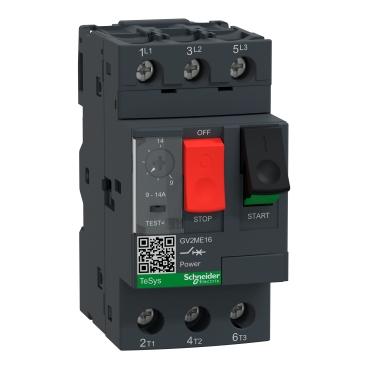

GV2ME16 Motor Circuit Breaker – Schneider Electric

Product Overview

The GV2ME16 is a motor circuit breaker from the TeSys GV2 series by Schneider Electric. It is designed to provide reliable protection for motors and circuits in industrial applications. This 3-pole breaker features a thermal magnetic trip mechanism and screw clamp terminals for secure connections.

Key Features

• Type: Motor Circuit Breaker
• Series: TeSys GV2
• Number of Poles: 3P (3 Poles)
• Current Rating: 9-14 A
• Trip Mechanism: Thermal Magnetic
• Terminal Type: Screw Clamp Terminals
• Protection: Provides overload and short-circuit protection for motors
• Mounting: DIN Rail Mounting
• Standards Compliance: Complies with IEC/EN 60947-2 and IEC/EN 60947-4-1 standards
• Application: Suitable for motor protection in industrial environments

Technical Specifications

Dimensions and Weight

• Width: 45 mm
• Height: 78 mm
• Depth: 70 mm
• Weight: Approx. 0.3 kg

Applications

The GV2ME16 motor circuit breaker is ideal for protecting motors in various industrial applications, including:

• Conveyor systems
• Pumps and compressors
• Fans and blowers
• Machine tools
• Other motor-driven equipment

Safety and Compliance

The GV2ME16 complies with international standards, ensuring safe and reliable operation in demanding environments. It is designed to meet the requirements of IEC/EN 60947-2 and IEC/EN 60947-4-1, providing peace of mind for users.

Warranty and Support

Schneider Electric offers a standard warranty on the GV2ME16 motor circuit breaker. For technical support and warranty claims, customers can contact Schneider Electric’s customer service team.
