LC2K0601B7 | TeSys K Reversing Contactor

Product Description

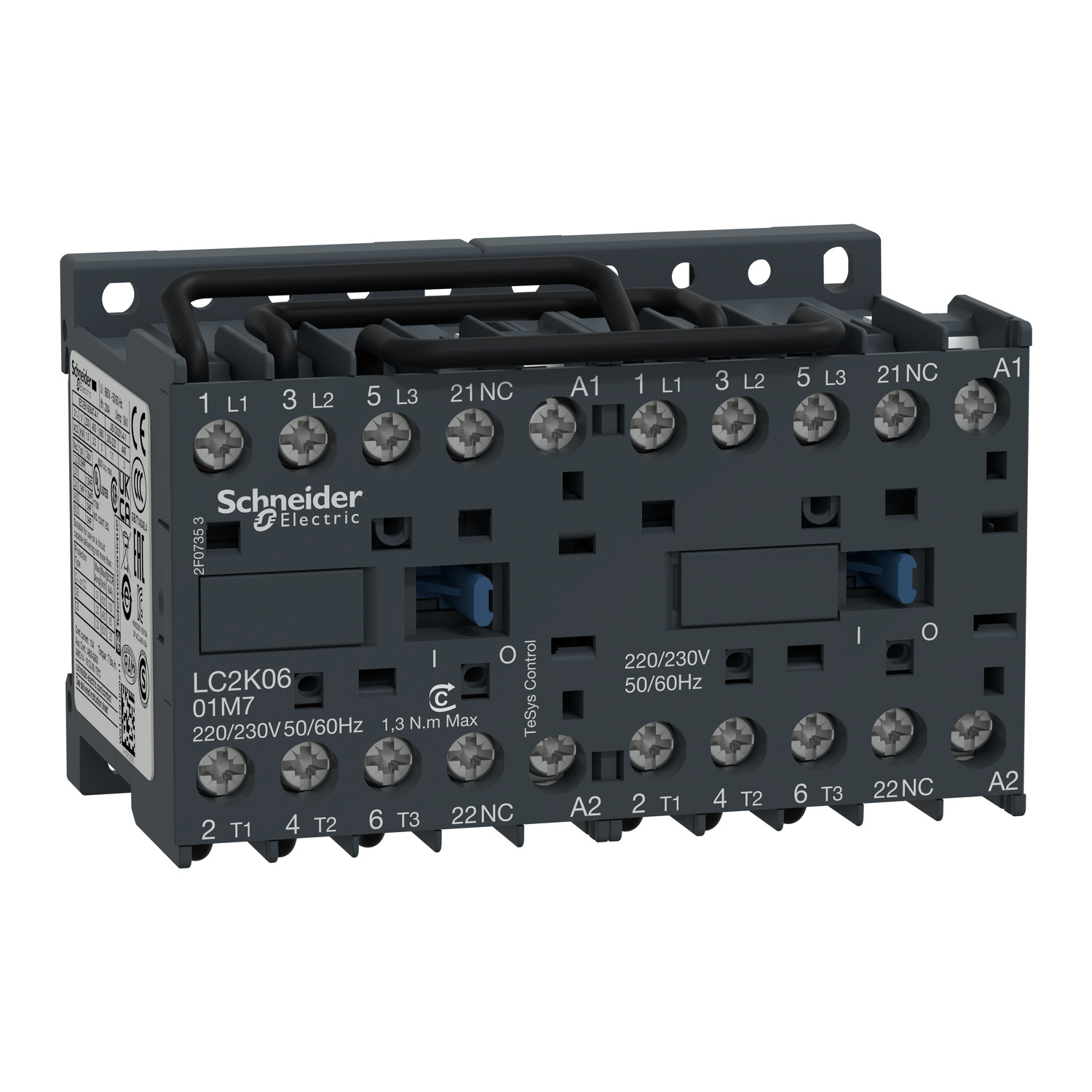

The LC2K0601B7 is a TeSys K reversing contactor manufactured by Schneider Electric. It is designed for controlling and reversing the direction of three-phase motors in industrial applications. This contactor is compact, reliable, and suitable for a wide range of motor control tasks.

Key Features

Type: Reversing Contactor
Number of Poles: 3P (3 Poles)
Rated Operational Voltage (Ue): AC-3 ≤ 440 V
Rated Operational Current (Ie): 6 A
Auxiliary Contacts: 1 Normally Closed (1 NC)
Coil Voltage: 24 V AC
Mounting: Screw Mounting
Mechanical Durability: High mechanical endurance
Electrical Durability: High electrical endurance
Compact Design: Space-saving and easy to install
Compliance: Meets international standards for safety and performance

Applications

The LC2K0601B7 is ideal for use in:

Motor control and reversing applications
Industrial machinery
Conveyor systems
Pumps and fans
HVAC systems

Technical Specifications

Parameter	Value
Rated Insulation Voltage (Ui)	690 V
Rated Thermal Current (Ith)	6 A
Coil Power Consumption	Low power consumption
Operating Temperature Range	-25°C to +60°C
Weight	Approx. 0.3 kg
