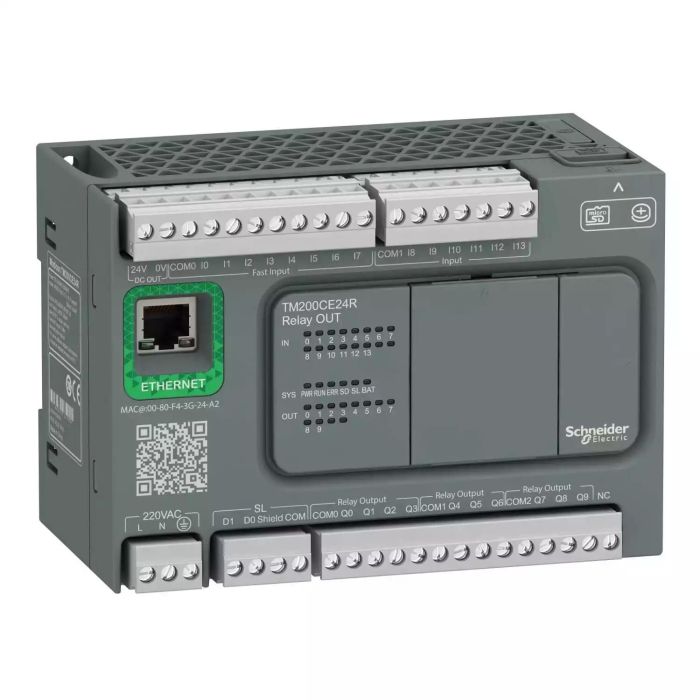

TM200CE24R | CONTR. M200 24I O 220VAC RELAY ETH – Schneider Electric

Name: TM200CE24R | CONTR. M200 24I O 220VAC RELAY ETH - Schneider Electric - myelectric.in
Brand: Schneider Electric
SKU: TM200CE24R
Price: 17582.04 INR
Availability: BackOrder

SKU: TM200CE24R

Original price was: ₹48,839.00.Current price is: ₹17,582.04. Excl. GST

Dispatch By : 2 Weeks

18 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Additional Addons/Accessories

-64%

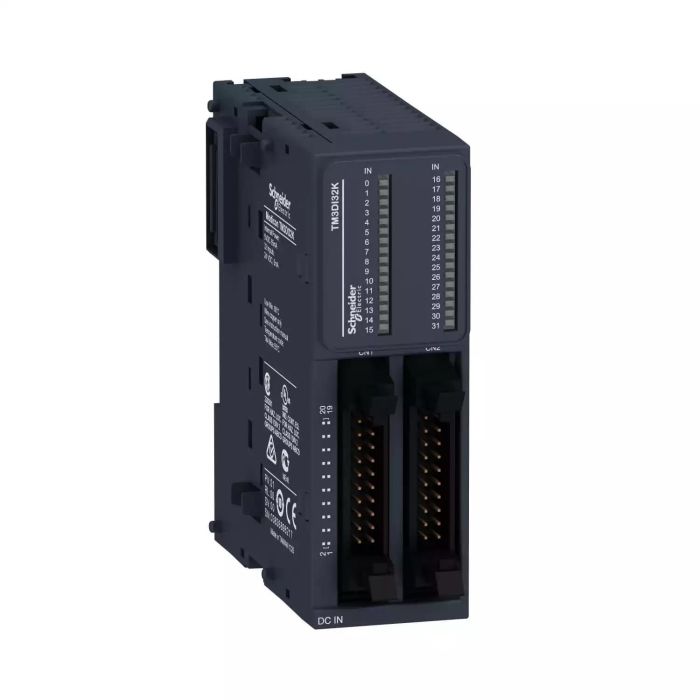

TM3DI32K | MODULE TM3-32 INPUTS HE10 – Schneider Electric

All Products

Schneider Electric

Excl. GST

Add to basket

SKU: TM3DI32K

-64%

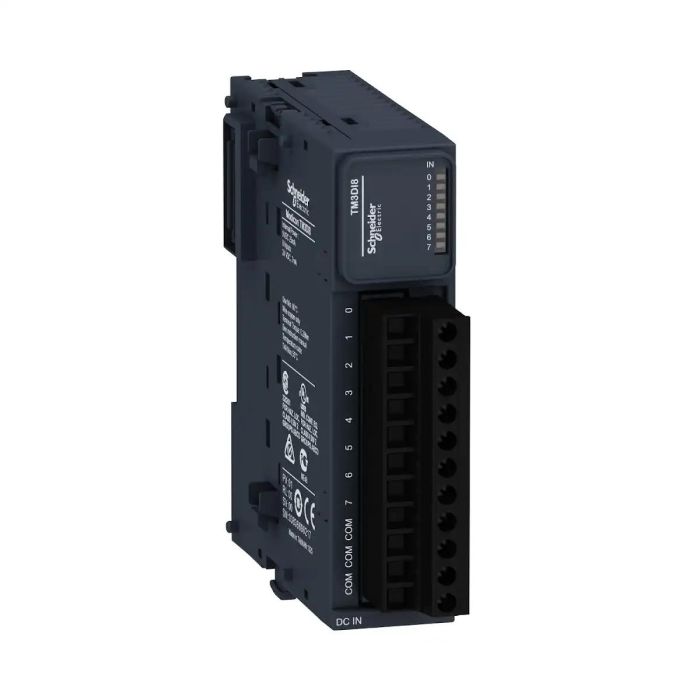

TM3DI8 | MODULE TM3-8 INPUTS – Schneider Electric

All Products

Schneider Electric

Excl. GST

Add to basket

SKU: TM3DI8

-64%

TM3DQ8U | MODULE TM3-8 OUT TR.NPN – Schneider Electric

All Products

Schneider Electric

Excl. GST

Add to basket

SKU: TM3DQ8U

-64%

TM3DQ8R | MODULE TM3-8 OUT RELAYS – Schneider Electric

All Products

Schneider Electric

Excl. GST

Add to basket

SKU: TM3DQ8R

-64%

TM3RDM16R | TM3.DC I O 8 INPUT – Schneider Electric

All Products

Schneider Electric

Excl. GST

Add to basket

SKU: TM3RDM16R

-64%

TM3DQ8T | MODULE TM3-8 OUT TR.PNP – Schneider Electric

All Products

Schneider Electric

Excl. GST

Add to basket

SKU: TM3DQ8T

-64%

TM3RDM32R | TM3.DC I O 16 INPUT – Schneider Electric

All Products

Schneider Electric

Excl. GST

Add to basket

SKU: TM3RDM32R

-64%

TM3DQ32TK | MODULE TM3-32 OUT TR.PNP HE10 – Schneider Electric

All Products

Schneider Electric

Excl. GST

Add to basket

SKU: TM3DQ32TK

-64%

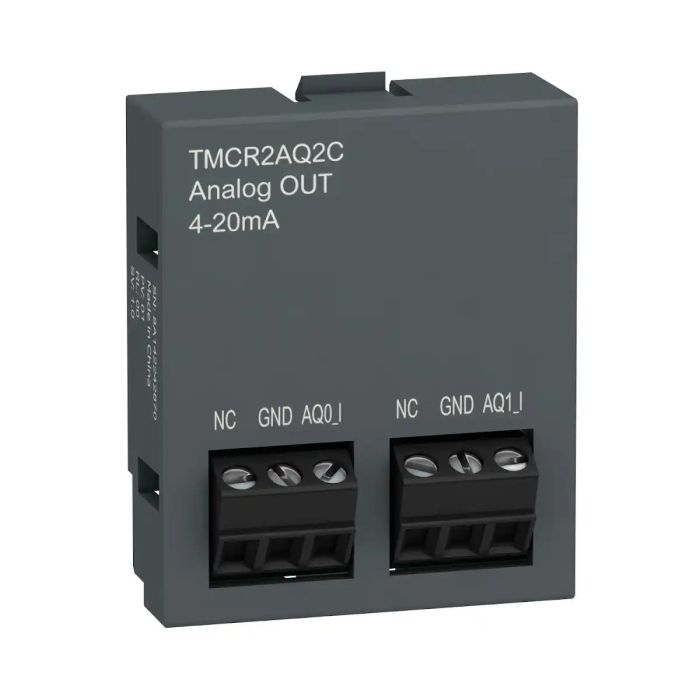

TMCR2AQ2C | CARTRIDGE Medium-2 ANALOG CURRENT OUTPUT – Schneider Electric

All Products

Schneider Electric

Excl. GST

Add to basket

SKU: TMCR2AQ2C

-64%

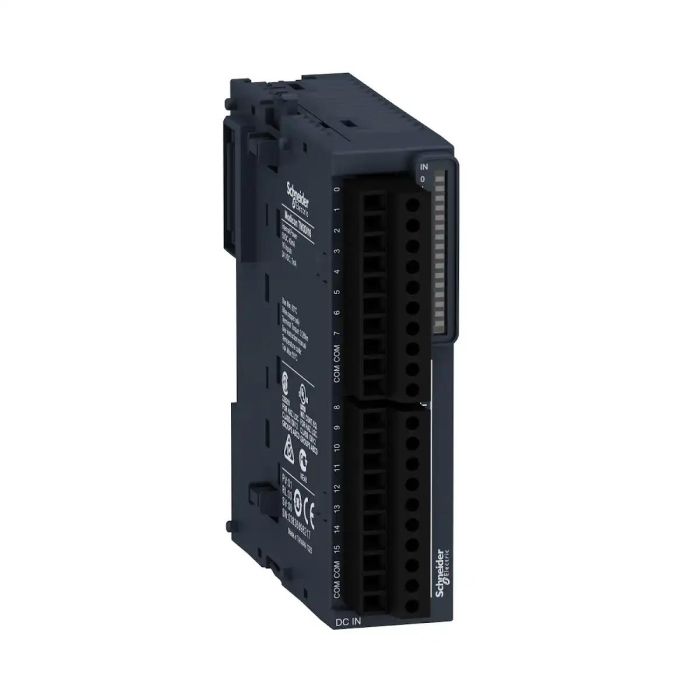

TM3DI16 | MODULE TM3-16 INPUTS – Schneider Electric

All Products

Schneider Electric

Excl. GST

Add to basket

SKU: TM3DI16

-64%

TMCR2AQ2V | CARTRIDGE Medium-2 ANALOG VOLTAGE OUTPUT – Schneider Electric

All Products

Schneider Electric

Excl. GST

Add to basket

SKU: TMCR2AQ2V

-64%

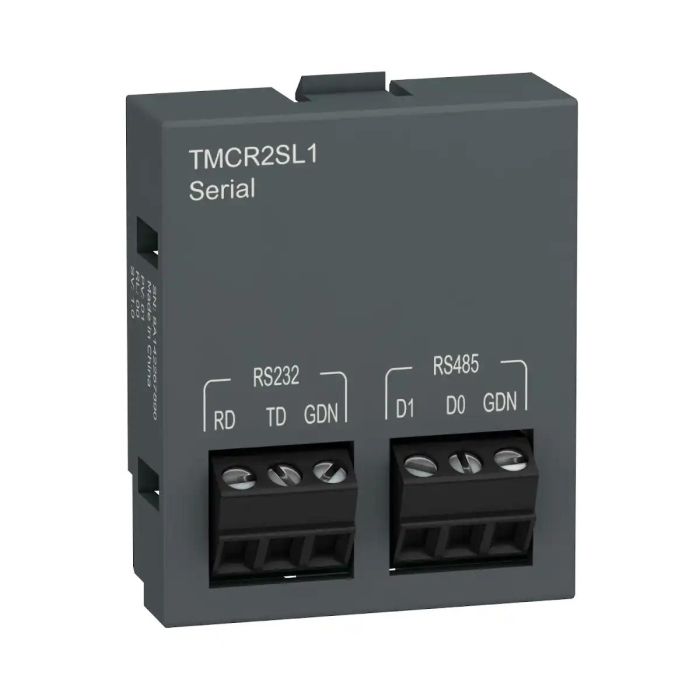

TMCR2SL1 | CARTRIDGE Medium-1 SELIAL LINE – Schneider Electric

All Products

Schneider Electric

Excl. GST

Add to basket

SKU: TMCR2SL1

-64%

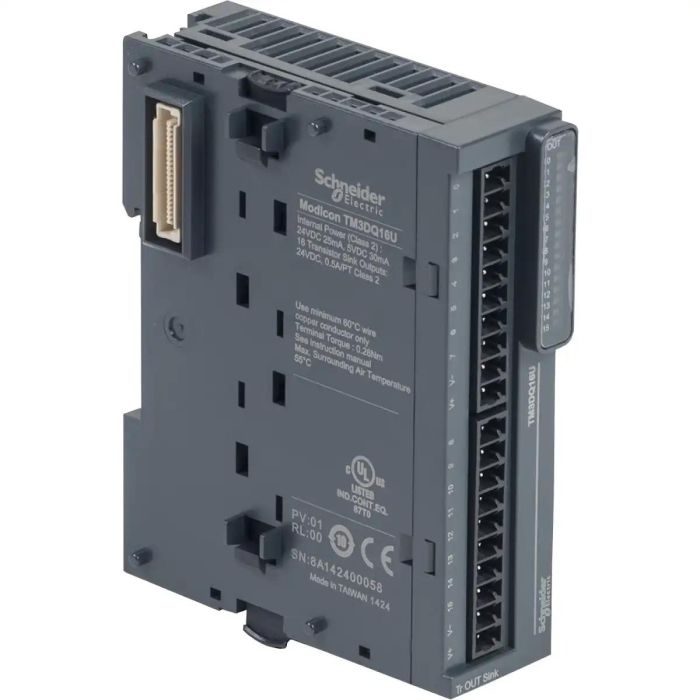

TM3DQ16U | MODULE TM3-16 OUT TR.NPN – Schneider Electric

All Products

Schneider Electric

Excl. GST

Add to basket

SKU: TM3DQ16U

-64%

TMCR2AI2 | CARTRIDGE Medium-2 ANZLOG CURRENT INPUTS – Schneider Electric

All Products

Schneider Electric

Excl. GST

Add to basket

SKU: TMCR2AI2

-64%

TM3DQ16T | MODULE TM3-16 OUT TR.PNP – Schneider Electric

All Products

Schneider Electric

Excl. GST

Add to basket

SKU: TM3DQ16T

-64%

TM3DQ16R | MODULE TM3-16 OUT RELAYS – Schneider Electric

All Products

Schneider Electric

Excl. GST

Add to basket

SKU: TM3DQ16R

Sourced through authorised channels, the Schneider Electric TM200CE24R relay from the Easy Modicon M200 range delivers dependable performance for motor control and switching. Key ratings include 220V AC, IP20 with protective cover in place. myelectric.in stocks the TM200CE24R | CONTR. M200 24I O 220VAC RELAY ETH for contractors, panel builders, and project buyers — buy online with GST invoice, or request a bulk quote for domestic supply and export to UAE, Singapore, UK, USA, Sri Lanka and more.

📋 Technical Specifications

Product
Brand	Schneider Electric
Part Number / SKU	TM200CE24R
Category	Relay
Main
Range of product	Easy Modicon M200
Product or component type	Logic controller
[Us] rated supply voltage	100…240 V AC
Discrete I/O number	24
Discrete input number	I2…I5: 4 fast input I0, I1, I6, I7: 4 high speed input I8…I13: 6 regular input
Discrete output number	10 relay
Discrete input voltage	24 V
Discrete input voltage type	DC
Discrete input current	7 mA for input
Discrete input logic	Sink or source (positive/negative) type 1 conforming to IEC 61131-2
Discrete output voltage	24 V DC 220 V AC
Discrete output current	2 A
Discrete output type	Relay normally open
Power consumption in VA	52…64 VA at 100…240 V AC (with max I/O)
Complementary
Maximum number of I/O expansion module	4 with 128 discrete output(s) for transistor output 4 with 74 discrete output(s) for relay output
Supply voltage limits	85…264 V
Network frequency	50/60 Hz
Inrush current	50 A
Voltage state 1 guaranteed	>= 15 V for input
Voltage state 0 guaranteed	<= 5 V for input
Input impedance	3.3 kOhm for discrete input
Response time	5 µs turn-off, I0, I1, I6, I7 terminal(s) for high speed input 5 µs turn-on, I0, I1, I6, I7 terminal(s) for high speed input 100 µs turn-off, I2…I5 terminal(s) for fast input 35 µs turn-on, I2…I5 terminal(s) for fast input 10 ms turn-off, Q0…Q9 terminal(s) for relay output 10 ms turn-on, Q0…Q9 terminal(s) for relay output 100 µs turn-off, I8…I13 terminal(s) for regular input 35 µs turn-on, I8…I13 terminal(s) for regular input
Configurable filtering time	0 ms for input 3 ms for input 12 ms for input
Output voltage limits	30 V DC 250 V AC
Maximum current per output common	4 A at COM 2 4 A at COM 0 4 A at COM 1
Electrical durability	100000 cycles AC-12, 240 V, 480 VA, resistive 100000 cycles DC-12, 24 V, 48 W, resistive
Switching frequency	0.1 Hz with maximum load
Mechanical durability	20000000 cycles for relay output
Minimum load	10 mA at 5 V DC for relay output
Memory capacity	512 byte internal flash for backup of programs
Data storage equipment	32 GB micro SD card (optional)
Battery type	BR2032 Li-CFx (Lithium-Carbon Monofluoride), battery life: 5 year(s)
Backup time	3 years at 25 °C (by interruption of power supply)
Execution time for 1 KInstruction	0.3 ms for event and periodic task
Execution time per instruction	0.2 µs Boolean
Exct time for event task	60 µs response time
Clock drift	<= 90 s/month at 25 °C
Regulation loop	Adjustable PID regulator up to 14 simultaneous loops
Control signal type	Quadrature (x1, x2, x4) at 100 kHz for fast input (HSC mode) Pulse/direction at 100 kHz for fast input (HSC mode) Single phase at 100 kHz for fast input (HSC mode) CW/CCW at 100 kHz for fast input (HSC mode)
Counting input number	4 fast input (HSC mode) at 100 kHz 32 bits
Integrated connection type	USB port with mini B USB 2.0 connector Non isolated serial link serial 1 with terminal block connector and RS485 interface Non isolated serial link serial 2 with terminal block connector and RS232/RS485 interface Ethernet Modbus TCP/IP Ethernet with RJ45 connector and 1 Ethernet port 10/100BASE-T interface Isolated serial link serial 2 with terminal block connector and RS485 interface
Transmission rate	1.2…115.2 kbit/s (115.2 kbit/s by default) for bus length of 15 m for RS485 1.2…115.2 kbit/s (115.2 kbit/s by default) for bus length of 3 m for RS232 12 Mbit/s for USB 10/100 Mbit/s for bus length of 100 m for Ethernet Modbus TCP/IP
Communication port protocol	USB port: USB – SoMachine-Network Non isolated serial link: Modbus master/slave – RTU/ASCII or SoMachine-Network Ethernet Modbus TCP/IP: Modbus TCP/IP client/server
Local signalling	1 LED (green) for PWR 1 LED (green) for RUN 1 LED (red) for module error (ERR) 1 LED (green) for SD card access (SD) 1 LED (red) for BAT 1 LED (green) for SL1 1 LED per channel (green) for I/O state 2 LEDs (green) for communication (LK/ACT 10/100)
Electrical connection	Mini B USB 2.0 connectorfor a programming terminal RJ45 connectorfor connecting Ethernet network removable screw terminal blockfor inputs removable screw terminal blockfor outputs removable screw terminal block, 4 terminal(s) for connecting the serial link1 removable screw terminal block, 3 terminal(s) for connecting the 100-240 V AC power supply
Maximum cable distance between devices	Unshielded cable: <50 m for input Shielded cable: <10 m for fast input Shielded cable: <10 m for high speed input Unshielded cable: <150 m for output
Insulation	Non-insulated between inputs Between output and internal logic at 1780 V AC Between output groups at 1780 V AC Between supply and internal logic at 1780 V AC Between input and internal logic at 500 V AC Between fast input and internal logic at 500 V AC Between input groups at 500 V AC
Sensor power supply	24 V DC at 250 mA supplied by the controller
Marking	CE
Mounting support	Top hat type TH35-15 rail conforming to IEC 60715 Top hat type TH35-7.5 plate or panel with fixing kit conforming to IEC 60715
Height	90 mm
Depth	70 mm
Width	130 mm
Product weight	0.413 kg
Environment
IP degree of protection	IP20 with protective cover in place
Product certifications	CE
Standards	IEC 61010-2-201 IEC 61131-2
Electromagnetic compatibility	Electrostatic discharge immunity test – test level: 8 kV (air discharge) conforming to IEC 61000-4-2 Electrostatic discharge immunity test – test level: 6 kV (contact discharge) conforming to IEC 61000-4-2 Susceptibility to electromagnetic fields – test level: 10 V/m (80 MHz…3 GHz) conforming to IEC 61000-4-3 Magnetic field at power frequency – test level: 30 A/m conforming to IEC 61000-4-8 Electrical fast transient/burst immunity test – test level: 2 kV (power lines) conforming to IEC 61000-4-4 Electrical fast transient/burst immunity test – test level: 2 kV (relay output) conforming to IEC 61000-4-4 Electrical fast transient/burst immunity test – test level: 1 kV (I/O) conforming to IEC 61000-4-4 Electrical fast transient/burst immunity test – test level: 1 kV (serial link) conforming to IEC 61000-4-4 1.2/50 µs shock waves immunity test – test level: 1 kV (power lines (DC)) conforming to IEC 61000-4-5 1.2/50 µs shock waves immunity test – test level: 2 kV (power lines (AC)) conforming to IEC 61000-4-5 1.2/50 µs shock waves immunity test – test level: 2 kV (relay output) conforming to IEC 61000-4-5 1.2/50 µs shock waves immunity test – test level: 1 kV (I/O) conforming to IEC 61000-4-5 1.2/50 µs shock waves immunity test – test level: 1 kV (shielded cable) conforming to IEC 61000-4-5 1.2/50 µs shock waves immunity test – test level: 0.5 kV (power lines (DC)) conforming to IEC 61000-4-5 1.2/50 µs shock waves immunity test – test level: 1 kV (power lines (AC)) conforming to IEC 61000-4-5 Conducted RF disturbances – test level: 10 V (0.15…80 MHz) conforming to IEC 61000-4-6 Conducted emission – test level: 79 dBμV/m QP/66 dBμV/m AV (power lines (AC)) conforming to IEC 55011 Conducted emission – test level: 73 dBμV/m QP/60 dBμV/m AV (power lines (AC)) conforming to IEC 55011 Radiated emission – test level: 40 dBμV/m QP class A (10 m) conforming to IEC 55011 Radiated emission – test level: 47 dBμV/m QP class A (10 m) conforming to IEC 55011 Electrical fast transient/burst immunity test – test level: 1 kV (Ethernet line) conforming to IEC 61000-4-4
Shock resistance	15 gn for 11 ms 30 gn for 6 ms
Immunity to microbreaks	10 ms
Vibration resistance	3.5 mm at 5…8.4 Hz on symmetrical rail 1 gn at 8.4…150 Hz on symmetrical rail 3.5 mm at 5…8.7 Hz on panel mounting 2 gn at 8.7…150 Hz on panel mounting
Relative humidity	10…95 %, without condensation (in operation) 10…95 %, without condensation (in storage)
Ambient air temperature for operation	0…55 °C (horizontal installation)
Ambient air temperature for storage	-25…70 °C
Pollution degree	<= 2
Operating altitude	0…2000 m
Storage altitude	0…3000 m
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	9.497 cm
Package 1 Width	13.655 cm
Package 1 Length	14.312 cm
Package 1 Weight	609.5 g
Unit Type of Package 2	S03
Number of Units in Package 2	12
Package 2 Height	30 cm
Package 2 Width	30 cm
Package 2 Length	40 cm
Package 2 Weight	7810 g
Unit Type of Package 3	P12
Number of Units in Package 3	288
Package 3 Height	95 cm
Package 3 Width	80 cm
Package 3 Length	120 cm
Package 3 Weight	196440 g
Contractual warranty
Warranty (in months)	18
