LP1K0910GD | CONTACTOR - Schneider Electric - Image 1
Click to enlarge

LP1K0910GD | CONTACTOR – Schneider Electric

SKU: LP1K0910GD

Original price was: ₹6,190.00.Current price is: ₹2,785.50. Excl. GST

Dispatch By : 9 Weeks

Dispatch By : 9 Weeks

My Electric Support Online · Mon–Sat 9am–6pm IST
Product enquiry
Order on WhatsApp SKU: LP1K0910GD

Same-day dispatch · GST invoice available

11 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order
Global DeliveryShipped pan-India and to export markets.
On-Time DeliveryPacked and dispatched on schedule.
100% OriginalFrom brand-authorised channels only.
GST InvoiceCompliant, ITC-ready tax invoice.
Secure PaymentEncrypted, trusted payment gateways.
Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Additional Addons/Accessories

-55%

LA4KE1FC | K SUPPRESSOR VARISTOR 50-129VAC VDC – Schneider Electric

Schneider Electric
Original price was: ₹1,995.00.Current price is: ₹897.75. Excl. GST
Add to basket
SKU: LA4KE1FC
LA1KN22 TeSys K Auxiliary contact block 2 NO 2 NC screw-clamps terminals Schneider Electric la1kn22 image 1500x1500
-55%

LA1KN04 | TeSys K – Auxiliary contact block – 4 NC – screw-clamps terminals – Schneider Electric

Schneider Electric
Original price was: ₹2,330.00.Current price is: ₹1,048.50. Excl. GST
Add to basket
SKU: LA1KN04
LA1KN20 TeSys K Auxiliary contact block 2 NO screw-clamps terminals Schneider Electric la1kn11 image 1500x1500
-55%

LA1KN02 | TeSys K – Auxiliary contact block – 2 NC – screw-clamps terminals – Schneider Electric

Schneider Electric
Original price was: ₹1,515.00.Current price is: ₹681.75. Excl. GST
Add to basket
SKU: LA1KN02
LA1KN22 TeSys K Auxiliary contact block 2 NO 2 NC screw-clamps terminals Schneider Electric la1kn22 image 1500x1500
-55%

LA1KN13 | TeSys K – Auxiliary contact block – 1 NO + 3 NC – screw-clamps terminals – Schneider Electric

Schneider Electric
Original price was: ₹2,330.00.Current price is: ₹1,048.50. Excl. GST
Add to basket
SKU: LA1KN13
Placeholder
-48%

A9MEM1573 | PowerTag Energy F63 3P – Schneider Electric

Original price was: ₹26,521.00.Current price is: ₹13,790.92. Excl. GST
Add to basket
SKU: A9MEM1573
LA1KN22 TeSys K Auxiliary contact block 2 NO 2 NC screw-clamps terminals Schneider Electric la1kn22 image 1500x1500
-55%

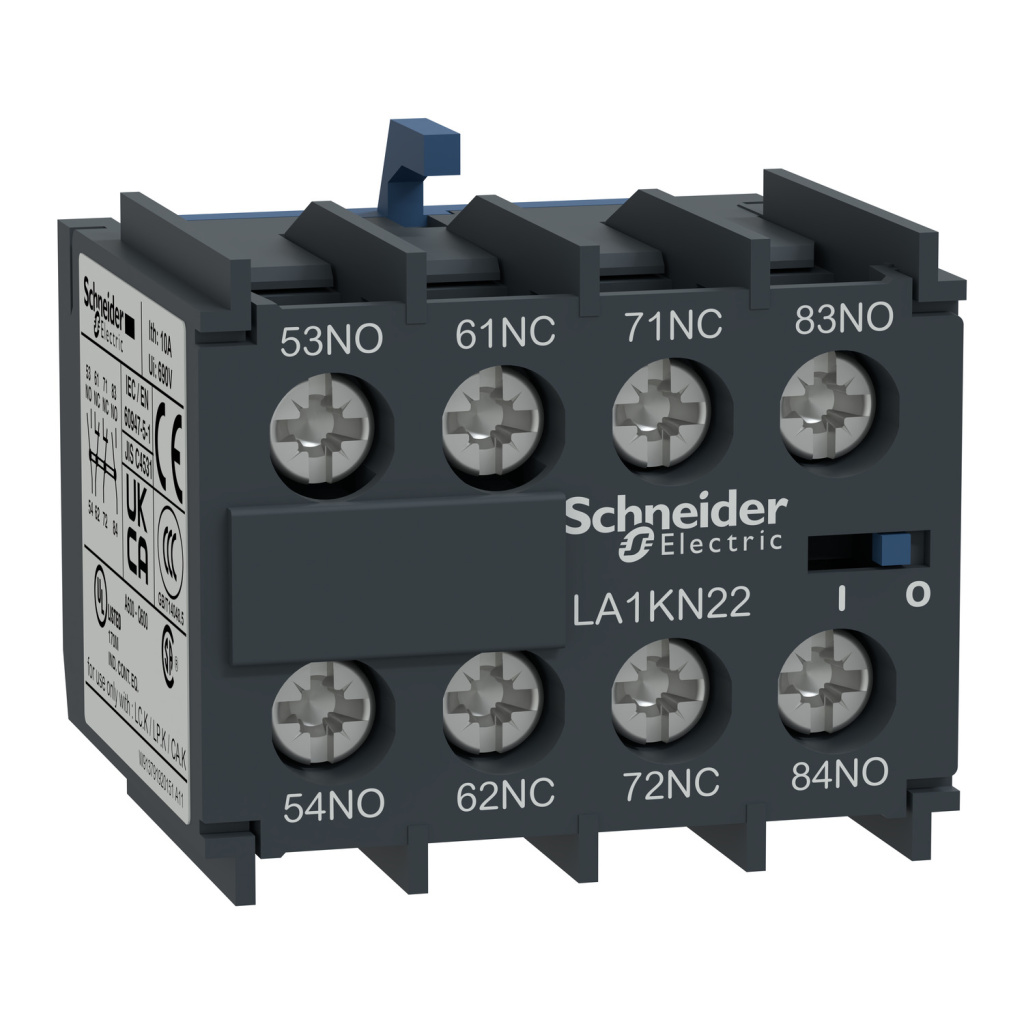

LA1KN22 | TeSys K – Auxiliary contact block – 2 NO + 2 NC – screw-clamps terminals – Schneider Electric

Schneider Electric
Original price was: ₹2,330.00.Current price is: ₹1,048.50. Excl. GST
Add to basket
SKU: LA1KN22
-14%

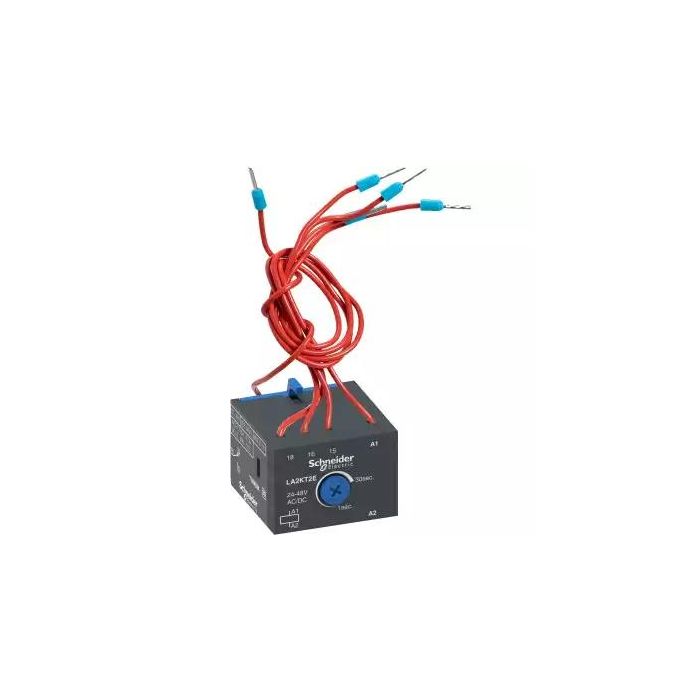

LA2KT2E | TIMER DELAY ON – Schneider Electric

Schneider Electric
Original price was: ₹7,625.00.Current price is: ₹6,557.50. Excl. GST
Add to basket
SKU: LA2KT2E
LA1KN22 TeSys K Auxiliary contact block 2 NO 2 NC screw-clamps terminals Schneider Electric la1kn22 image 1500x1500
-55%

LA1KN31 | TeSys K – Auxiliary contact block – 3 NO + 1 NC – screw-clamps terminals – Schneider Electric

Schneider Electric
Original price was: ₹2,330.00.Current price is: ₹1,048.50. Excl. GST
Add to basket
SKU: LA1KN31
LA1KN22 TeSys K Auxiliary contact block 2 NO 2 NC screw-clamps terminals Schneider Electric la1kn22 image 1500x1500
-55%

LA1KN40 | TeSys K – Auxiliary contact block – 4 NO – screw-clamps terminals – Schneider Electric

Schneider Electric
Original price was: ₹2,330.00.Current price is: ₹1,048.50. Excl. GST
Add to basket
SKU: LA1KN40
LA1KN20 TeSys K Auxiliary contact block 2 NO screw-clamps terminals Schneider Electric la1kn11 image 1500x1500
-55%

LA1KN20 | TeSys K – Auxiliary contact block – 2 NO – screw-clamps terminals – Schneider Electric

Schneider Electric
Original price was: ₹1,515.00.Current price is: ₹681.75. Excl. GST
Add to basket
SKU: LA1KN20
LA1KN20 TeSys K Auxiliary contact block 2 NO screw-clamps terminals Schneider Electric la1kn11 image 1500x1500
-55%

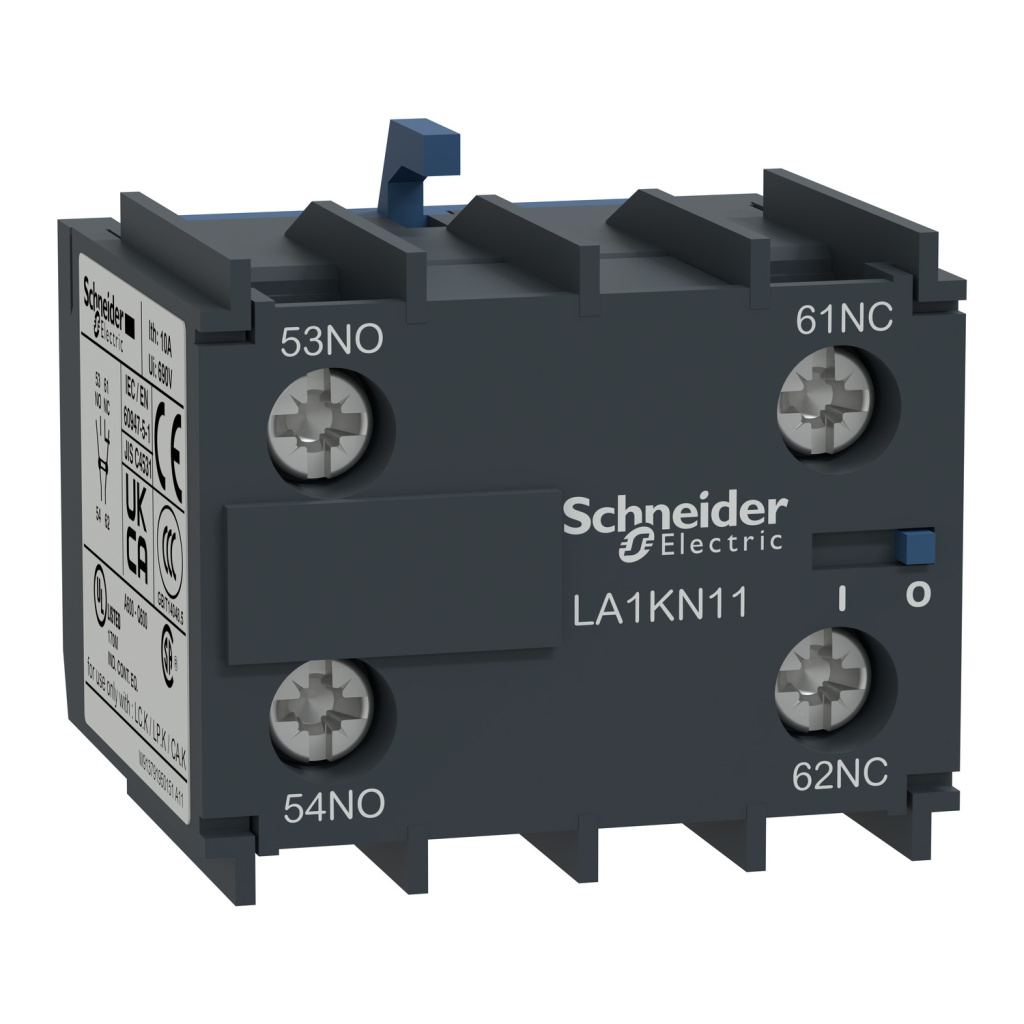

LA1KN11 | TeSys K – Auxiliary contact block – 1 NO + 1 NC – screw-clamps terminals – Schneider Electric

Schneider Electric
Original price was: ₹1,385.00.Current price is: ₹623.25. Excl. GST
Add to basket
SKU: LA1KN11

    Looking for the LP1K0910GD | CONTACTOR? This genuine Schneider Electric contactor from the TeSys range is built for motor control and switching, combining proven reliability with full compliance to applicable IEC/IS standards. Key ratings include 9 A, Power circuit: <= 690 V AC <= 400 Hz, 3P. Order part number LP1K0910GD from myelectric.in — a trusted Schneider Electric supplier offering competitive pricing, GST billing, and shipping across India and overseas.

    📋 Technical Specifications

    Product
    BrandSchneider Electric
    Part Number / SKULP1K0910GD
    CategoryContactor
    Main
    RangeTeSys
    Product or component typeContactor
    Device short nameLP1K
    Contactor applicationMotor control
    Resistive load
    Complementary
    Utilisation categoryAC-3
    AC-3e
    AC-1
    AC-4
    Poles description3P
    power pole contact composition3 NO
    [Ue] rated operational voltagePower circuit: <= 690 V AC <= 400 Hz
    Signalling circuit: <= 690 V AC <= 400 Hz
    [Ie] rated operational current9 A (at <60 °C) at <= 440 V AC AC-3 for power circuit
    9 A (at <60 °C) at <= 440 V AC AC-3e for power circuit
    20 A (at <60 °C) at <= 690 V AC AC-1 for power circuit
    Control circuit typeDC standard
    [Uc] control circuit voltage125 V DC
    Motor power kW2.2 kW at 220…230 V AC 50/60 Hz AC-3
    4 kW at 380…415 V AC 50/60 Hz AC-3
    4 kW at 440/690 V AC 50/60 Hz AC-3
    2.2 kW at 220…230 V AC 50/60 Hz AC-3e
    4 kW at 380…415 V AC 50/60 Hz AC-3e
    4 kW at 440/690 V AC 50/60 Hz AC-3e
    2.2 kW at 220…230 V AC 50/60 Hz AC-4
    4 kW at 380…415 V AC 50/60 Hz AC-4
    4 kW at 440/690 V AC 50/60 Hz AC-4
    Auxiliary contact composition1 NO
    [Uimp] rated impulse withstand voltage8 kV
    Overvoltage categoryIII
    [Ith] conventional free air thermal current20 A (at 60 °C) for power circuit
    10 A (at 50 °C) for signalling circuit
    Irms rated making capacity110 A AC for power circuit conforming to IEC 60947
    110 A AC for signalling circuit conforming to IEC 60947
    Rated breaking capacity110 A at 220…230 V conforming to IEC 60947
    110 A at 380…400 V conforming to IEC 60947
    110 A at 415 V conforming to IEC 60947
    110 A at 440 V conforming to IEC 60947
    80 A at 500 V conforming to IEC 60947
    70 A at 660…690 V conforming to IEC 60947
    [Icw] rated short-time withstand current90 A 50 °C – 1 s for power circuit
    85 A 50 °C – 5 s for power circuit
    80 A 50 °C – 10 s for power circuit
    60 A 50 °C – 30 s for power circuit
    45 A 50 °C – 1 min for power circuit
    40 A 50 °C – 3 min for power circuit
    20 A 50 °C – >= 15 min for power circuit
    80 A – 1 s for signalling circuit
    90 A – 500 ms for signalling circuit
    110 A – 100 ms for signalling circuit
    Associated fuse rating25 A gG at <= 440 V for power circuit
    25 A aM for power circuit
    10 A gG for signalling circuit conforming to IEC 60947
    10 A gG for signalling circuit conforming to VDE 0660
    Average impedance3 mOhm – Ith 20 A 50 Hz for power circuit
    [Ui] rated insulation voltagePower circuit: 600 V conforming to UL 508
    Power circuit: 690 V conforming to IEC 60947-4-1
    Signalling circuit: 690 V conforming to IEC 60947-4-1
    Signalling circuit: 690 V conforming to IEC 60947-5-1
    Signalling circuit: 600 V conforming to UL 508
    Power circuit: 600 V conforming to CSA C22.2 No 14
    Signalling circuit: 600 V conforming to CSA C22.2 No 14
    Insulation resistance> 10 MOhm for signalling circuit
    Inrush power in W3 W (at 20 °C)
    Hold-in power consumption in W3 W at 20 °C
    Heat dissipation1.3 W
    Control circuit voltage limitsOperational: 0.8…1.15 Uc (at <50 °C)
    Drop-out: >= 0.10 Uc (at <50 °C)
    Connections – terminalsScrew clamp terminals 1 cable(s) 1.5…4 mm²solid
    Screw clamp terminals 1 cable(s) 0.75…4 mm²flexible without cable end
    Screw clamp terminals 1 cable(s) 0.34…2.5 mm²flexible with cable end
    Screw clamp terminals 2 cable(s) 1.5…4 mm²solid
    Screw clamp terminals 2 cable(s) 0.75…4 mm²flexible without cable end
    Screw clamp terminals 2 cable(s) 0.34…1.5 mm²flexible with cable end
    Power circuit: screw clamp terminals 2 cable(s) 1.5 mm²flexible with cable end
    Maximum operating rate3600 cyc/h
    Coil technologyWithout built-in suppressor module
    Auxiliary contacts typetype instantaneous 1 NO
    Minimum switching current5 mA for signalling circuit
    Minimum switching voltage17 V for signalling circuit
    Mounting supportPlate
    Rail
    Tightening torque0.8…1.3 N.m – on screw clamp terminals Philips No 2
    0.8…1.3 N.m – on screw clamp terminals flat Ø 6 mm
    0.8…1.3 N.m – on screw clamp terminals pozidriv No 2
    Operating time30…40 ms coil energisation and NO closing
    10 ms coil de-energisation and NO opening
    Safety reliability levelB10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1
    B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1
    Mechanical durability10 Mcycles
    Electrical durability1.3 Mcycles 9 A AC-3 at Ue <= 440 V
    1.3 Mcycles 9 A AC-3e at Ue <= 440 V
    0.16 Mcycles 20 A AC-1 at Ue <= 690 V
    0.02 Mcycles 54 A AC-4 at Ue <= 440 V
    Height58 mm
    Width45 mm
    Depth57 mm
    Product weight0.225 kg
    Environment
    StandardsEN/IEC 60947-4-1
    EN/IEC 60947-5-1
    UL 60947-4-1
    UL 60947-5-1
    CSA C22.2 No 60947-4-1
    CSA C22.2 No 60947-5-1
    GB/T 14048.4
    Product certificationsCB Scheme
    CCC
    UL
    CSA
    EAC
    CE
    UKCA
    IP degree of protectionIP2X
    Ambient air temperature for operation-25…50 °C
    Ambient air temperature for storage-50…80 °C
    Operating altitude2000 m without derating
    Flame retardanceV1 conforming to UL 94
    Requirement 2 conforming to NF F 16-101
    Requirement 2 conforming to NF F 16-102
    Packing Units
    Unit Type of Package 1PCE
    Number of Units in Package 11
    Package 1 Height4.800 cm
    Package 1 Width6.200 cm
    Package 1 Length6.600 cm
    Package 1 Weight225.000 g
    Unit Type of Package 2S02
    Number of Units in Package 240
    Package 2 Height15.000 cm
    Package 2 Width30.000 cm
    Package 2 Length40.000 cm
    Package 2 Weight9.000 kg
    Contractual warranty
    Warranty (in months)18

    ⚡ Key Features

    • Manufactured to IEC 60947-4-1 / IS 13947-4-1 — complies with the applicable Indian BIS and IEC international standards for this product category.
    • BIS certified, CE marked, RoHS compliant — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
    • Genuine authorised Schneider Electric product — sourced directly from the official distribution network with full manufacturer traceability and warranty.
    • GST invoice provided for India orders — valid for corporate procurement, government project orders, and public tender supply via myelectric.in.
    • Worldwide export available — UAE, Singapore, UK, USA, Sri Lanka & more. Contact +91 94814 00316 for bulk pricing and international shipping.

    🔗 Compatible Products & Accessories

    The following genuine accessories and compatible devices are designed to work with this product. Contact myelectric.in for pricing and availability:

    LA1KN22LA1KN11LA1KN40LA1KN31LA1KN20LA1KN04LA1KN02LA1KN13LA1KN11MLA2KT2ELA4KE1FCA9MEM1573

    ❓ Frequently Asked Questions

    Q: Can multiple LP1K0910GD contactors be wired for star-delta starting?

    A: Yes. Star-delta starters use three contactors: main (KM1), star (KM2), and delta (KM3). The Schneider Electric contactor series supports mechanical and electrical interlocking accessories that prevent simultaneous energisation of star and delta contactors — critical for safety. Ensure all three contactors are rated correctly for the motor FLC and star-delta transition current.

    Q: What is the electrical and mechanical life of the LP1K0910GD?

    A: Schneider Electric contactors are rated for millions of operations: typically 10–30 million mechanical operations and 1–3 million electrical operations at rated current and voltage (AC-3 duty). High-frequency switching applications (>10 operations/hour) require checking the specific thermal capacity of the contactor for continuous duty without overheating.

    Q: Can the LP1K0910GD be used for reversing duty (forward/reverse motor control)?

    A: Contactors used for reversing must be wired with two contactors interlocked so only one can energise at a time. The Schneider Electric series provides mechanical interlock kits that physically prevent both contactors from closing simultaneously — mandatory for reversing and brake applications to prevent phase-to-phase short circuits.

    Customer Reviews

    Related Products

    Solar Controller for 415V Induction motor pumps,10HP,Without RMU L T CS91466PO1O newbradd 7

    Solar Controller for 415V Induction motor pumps,3HP,Without RMU | L&T – CS91463PO1O

    Lauritz Knudsen (L&T)
    Read more
    SKU: CS91463PO1O
    MU-G10HN, 10HP, 20-32A, 360V wideband coil Voltage, DOL, Three Phase DOL Controller for Submersible Pump Application L T CS92

    MU-G7.5,7.5HP,13-22A, 360V wideband coil Voltage, DOL, Three Phase DOL Controller for Submersible Pump Application | L&T – CS92103SODO

    Lauritz Knudsen (L&T)
    ₹12,550.00 Excl. GST
    Add to basket
    SKU: CS92103SODO
    XB5AR31N Push button, Harmony XB5N XB7N, plastic, mushroom, green, 60mm, spring return, unmarked, 1 NO Schneider Electric xb5
    -46%

    XB5AR31N | Push button, Harmony XB5N XB7N, plastic, mushroom, green, 60mm, spring return, unmarked, 1 NO – Schneider Electric

    Schneider Electric
    Original price was: ₹675.00.Current price is: ₹364.50. Excl. GST
    Add to basket
    SKU: XB5AR31N
    ZB2BW36C Ø 22 mm fixing hole push button head with blue lamp Schneider Electric zb2bw36c
    -35%

    ZB2BW36C | Ø 22 mm fixing hole – push button head with blue lamp – Schneider Electric

    Schneider Electric
    Original price was: ₹305.00.Current price is: ₹198.25. Excl. GST
    Add to basket
    SKU: ZB2BW36C
    Placeholder
    -20%

    MS13MD09 | 7MDL, 1HP 3 PHASE DOL STARTER – Schneider Electric

    Schneider Electric
    Original price was: ₹5,530.00.Current price is: ₹4,424.00. Excl. GST
    Add to basket
    SKU: MS13MD09
    Placeholder
    -50%

    30002572 | EM1200 Energy meter Cl 0.5 RS485 LCD – Schneider Electric

    Schneider Electric
    Original price was: ₹6,271.00.Current price is: ₹3,135.50. Excl. GST
    Add to basket
    SKU: 30002572
