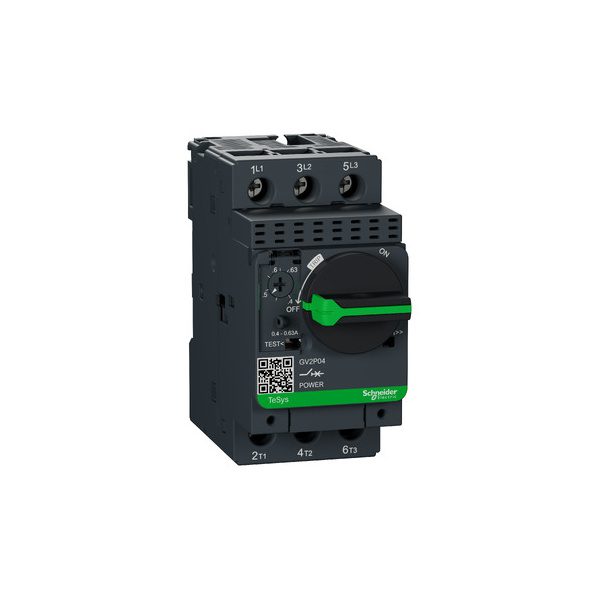

GV2P04 Motor Circuit Breaker – Schneider Electric
Product Overview
The GV2P04 is a motor circuit breaker from the TeSys GV2 range by Schneider Electric. It is designed to protect motors and circuits from overloads and short circuits. This 3-pole breaker is suitable for applications requiring precise protection with a current range of 0.4 to 0.63 A.
Key Features
- Type: Motor Circuit Breaker
- Range: TeSys GV2
- Number of Poles: 3P (3 Poles)
- Current Rating: 0.4 – 0.63 A
- Protection Type: Thermal Magnetic
- Terminal Type: Screw Clamp Terminals
- Mounting: DIN Rail Mounting
- Standards: Complies with IEC/EN 60947-2 and IEC/EN 60947-4-1 standards
- Applications: Suitable for motor protection in industrial and commercial environments
Technical Specifications
| Parameter | Value |
|---|---|
| Rated Operational Voltage (Ue) | 690 V AC |
| Rated Insulation Voltage (Ui) | 690 V AC |
| Rated Frequency | 50/60 Hz |
| Breaking Capacity (Icu) | 100 kA at 415 V AC |
| Mechanical Durability | 20,000 cycles |
| Electrical Durability | 10,000 cycles |
| Ambient Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
Additional Features
- Compact design for space-saving installation
- Easy to install and maintain
- Provides reliable protection against overloads and short circuits
- Compatible with Schneider Electric’s TeSys range of accessories
Applications
The GV2P04 motor circuit breaker is ideal for use in various industrial and commercial applications, including:
- Motor protection in machinery and equipment
- Control panels and distribution boards
- HVAC systems
- Pumps and compressors
Disclaimer
Specifications and features are subject to change without prior notice. Always refer to the official Schneider Electric documentation for the most accurate and up-to-date information.
