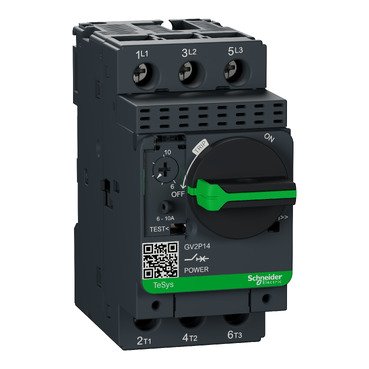

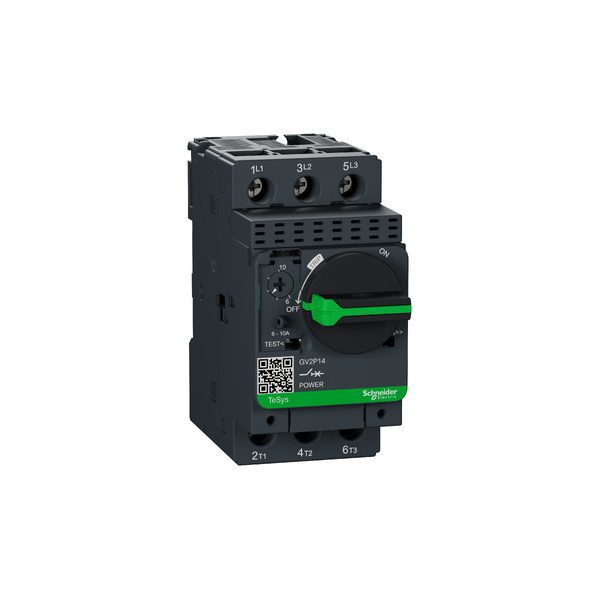

GV2P14 Motor Circuit Breaker – Schneider Electric
Product Overview
The GV2P14 is a motor circuit breaker from the TeSys GV2 range by Schneider Electric. It is designed to protect motors and circuits from overloads and short circuits. This 3-pole breaker is suitable for a wide range of industrial applications, ensuring reliable and safe operation.
Key Features
- Type: Motor Circuit Breaker
- Range: TeSys GV2
- Number of Poles: 3P (3 Poles)
- Current Rating: 6-10 A
- Tripping Mechanism: Thermal Magnetic
- Terminal Type: Screw Clamp Terminals
- Protection: Overload and Short Circuit Protection
- Mounting: DIN Rail Mounting
- Standards: Complies with IEC/EN 60947-2 and IEC/EN 60947-4-1 standards
- Applications: Suitable for motor protection in industrial environments
Detailed Specifications
| Parameter | Value |
|---|---|
| Rated Operational Voltage (Ue) | 690 V AC |
| Rated Insulation Voltage (Ui) | 690 V AC |
| Rated Frequency | 50/60 Hz |
| Breaking Capacity (Icu) | 100 kA at 415 V AC |
| Mechanical Durability | 20,000 cycles |
| Electrical Durability | 10,000 cycles |
| Ambient Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Weight | Approx. 0.5 kg |
Applications
The GV2P14 motor circuit breaker is ideal for protecting motors in various industrial applications, including:
- Conveyor Systems
- Pumps
- Compressors
- Fans
- Machine Tools
Safety and Compliance
The GV2P14 complies with international standards, ensuring high levels of safety and reliability. It is certified for use in various regions, making it a versatile choice for global applications.
Warranty
Schneider Electric offers a standard warranty on the GV2P14 motor circuit breaker. Please refer to the manufacturer’s warranty policy for detailed terms and conditions.
